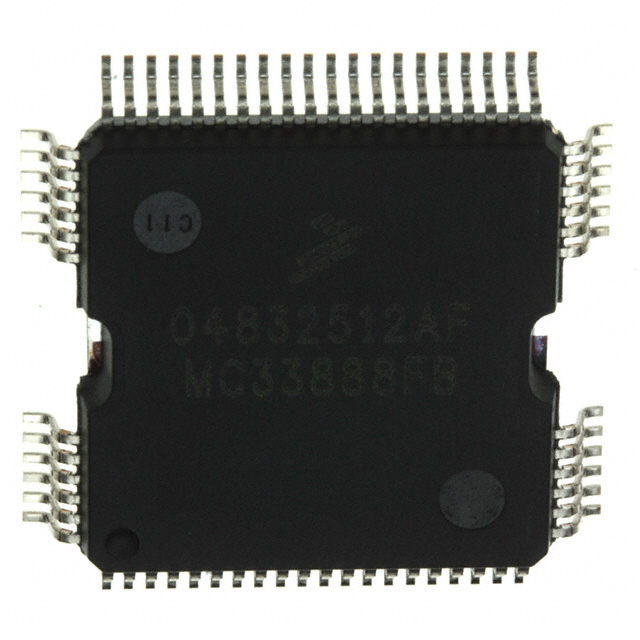

MC33888FB
IC PWR SWITCH N-CHANNEL 64PQFPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC33888FB is a high-performance power switch IC featuring 12 outputs, configurable as four high-side and eight low-side switches. This device offers robust fault protection, including fixed current limiting, open load detection, and over-voltage protection. Its integrated watchdog timer enhances system reliability. The MC33888FB utilizes an SPI interface for flexible control and diagnostics. With low on-state resistances of 10mOhm, 40mOhm, and 600mOhm, it minimizes power dissipation. The component operates across a wide voltage range, supporting loads from 6V to 27V and a supply voltage of 4.5V to 5.5V. It is housed in a 64-PQFP (14x14) surface-mount package, suitable for demanding applications in automotive and industrial sectors. Operating temperature range is -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Watchdog Timer |
| Packaging | Tray |
| Package / Case | 64-PowerBQFP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 12 (4 High Side, 8 Low Side) |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | 10mOhm, 40mOhm, 600mOhm |
| Input Type | - |
| Voltage - Load | 6V ~ 27V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | - |
| Supplier Device Package | 64-PQFP (14x14) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
