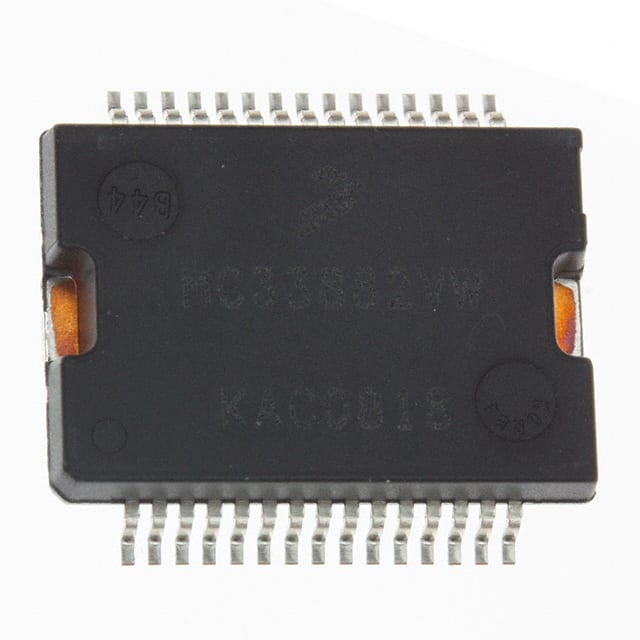

MC33882PVWR2
IC PWR SWITCH N-CHAN 1:1 30HSOPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC33882PVWR2 is a versatile power switch/driver featuring six N-channel, low-side outputs with a 1:1 ratio. This device, housed in a 30-HSOP package with an exposed pad, offers robust fault protection including fixed current limiting, open load detection, and overvoltage protection. Its interface capabilities include SPI and parallel communication, facilitating integration into complex control systems. The MC33882PVWR2 operates within a supply voltage range of 4.5V to 5.5V and supports load voltages from 8V to 25V, with a typical Rds On of 400mOhm. This component is suitable for applications in the automotive and industrial sectors, where reliable power distribution and load management are critical. It is supplied in a Tape & Reel (TR) package and operates across a wide temperature range from -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-BSOP (0.433"", 11.00mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI, Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 400mOhm |
| Input Type | - |
| Voltage - Load | 8V ~ 25V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 30-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
