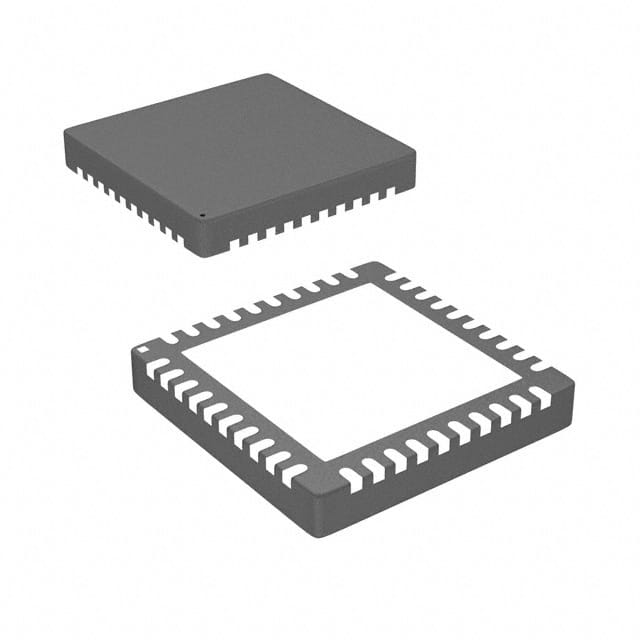

MC33882PEPR2
IC PWR SWITCH N-CHAN 1:1 32QFNManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC33882PEPR2 is a highly integrated power switch IC featuring six N-channel low-side outputs. This device is designed for general-purpose power distribution applications and offers robust fault protection including fixed current limiting, open load detection, and over-voltage protection. The MC33882PEPR2 supports both SPI and parallel interfaces for flexible control. With a load voltage range of 8V to 25V and a supply voltage range of 4.5V to 5.5V, it is suitable for demanding automotive and industrial applications. The component is supplied in a 32-HVQFN (7x7) package, mounted via surface mount, and delivered on tape and reel (TR). Key parameters include a typical Rds On of 400mOhm and an operating temperature range of -40°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VQFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI, Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 400mOhm |
| Input Type | - |
| Voltage - Load | 8V ~ 25V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-HVQFN (7x7) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
