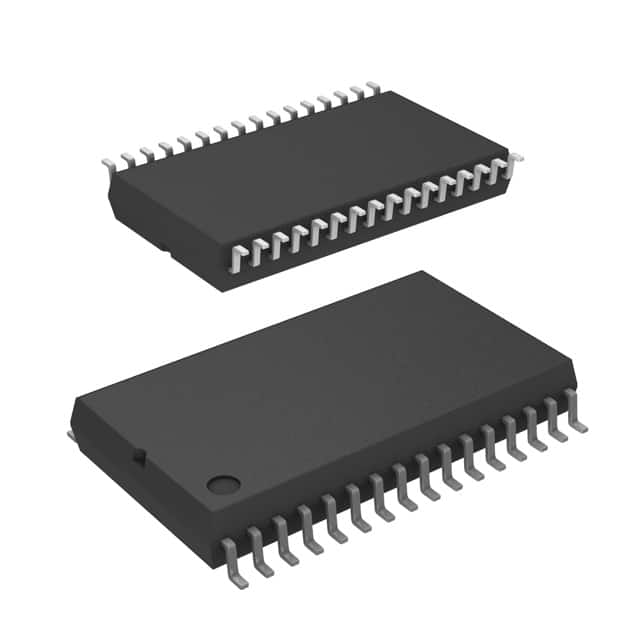

MC33882PEK
IC PWR DRIVER N-CHAN 1:1 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC33882PEK is a 6-channel N-channel power driver with a 1:1 input to output ratio. This device features robust fault protection including fixed current limiting, open load detection, and over-voltage protection. The output configuration is low-side, and the output type is N-channel. It supports both SPI and parallel interfaces for control. The MC33882PEK is housed in a 32-SOIC-EP package with an exposed pad, suitable for surface mounting. Typical on-resistance (Rds On) is 400 mOhm. Operating voltage for the load ranges from 8V to 25V, with a supply voltage (Vcc/Vdd) requirement of 4.5V to 5.5V. The operating temperature range is -40°C to 150°C (TJ). This component is utilized in automotive applications for power distribution and load driving.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: Last Time BuyPackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI, Parallel |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Low Side |
| Rds On (Typ) | 400mOhm |
| Input Type | - |
| Voltage - Load | 8V ~ 25V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
