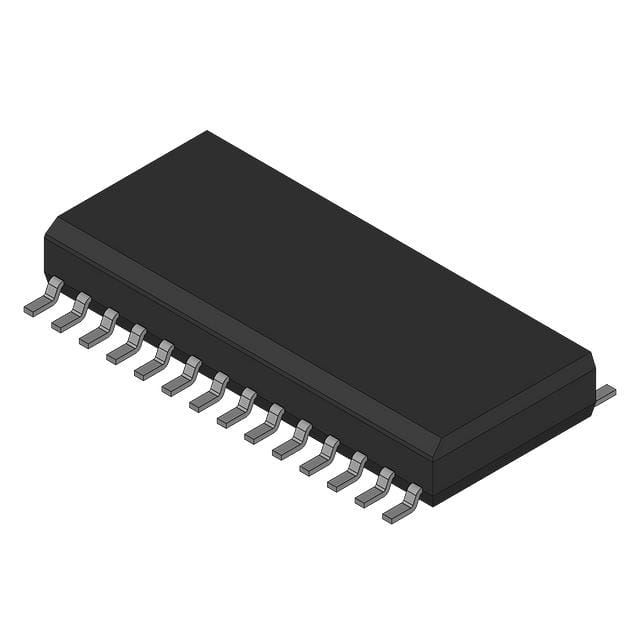

MC33880PEG
IC PWR SWITCH N-CHAN 1:8 28SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC33880PEG is an 8-channel N-channel power switch/driver designed for high-side or low-side applications. This component, packaged in a 28-SOIC, offers a robust solution for power distribution and load driving tasks. It provides a fixed current limit for fault protection, along with open load detection and over-voltage protection. The device operates within a load voltage range of 5.5V to 24.5V and a supply voltage of 4.75V to 5.25V, delivering up to 800mA per channel. Featuring an SPI interface, the MC33880PEG is suitable for automotive and industrial automation applications requiring precise power management and control. Its low on-resistance of 550mOhm (typical) contributes to efficient operation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | 550mOhm |
| Input Type | - |
| Voltage - Load | 5.5V ~ 24.5V |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 5.25V |
| Current - Output (Max) | 800mA |
| Ratio - Input:Output | 1:8 |
| Supplier Device Package | 28-SOIC |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
Request a Quote
