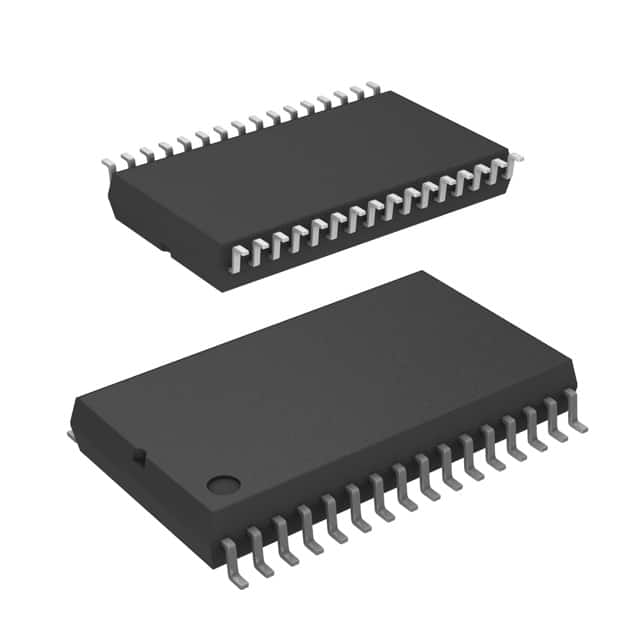

MC33879APEKR2
IC PWR SWITCH N-CHAN 1:4 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:4 N-Channel 600mA 32-SOIC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-BSSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side or Low Side |
| Rds On (Typ) | 750mOhm |
| Input Type | - |
| Voltage - Load | 5.5V ~ 27.5V |
| Voltage - Supply (Vcc/Vdd) | 3.1V ~ 5.5V |
| Current - Output (Max) | 600mA |
| Ratio - Input:Output | 1:4 |
| Supplier Device Package | 32-SOIC |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Voltage |
