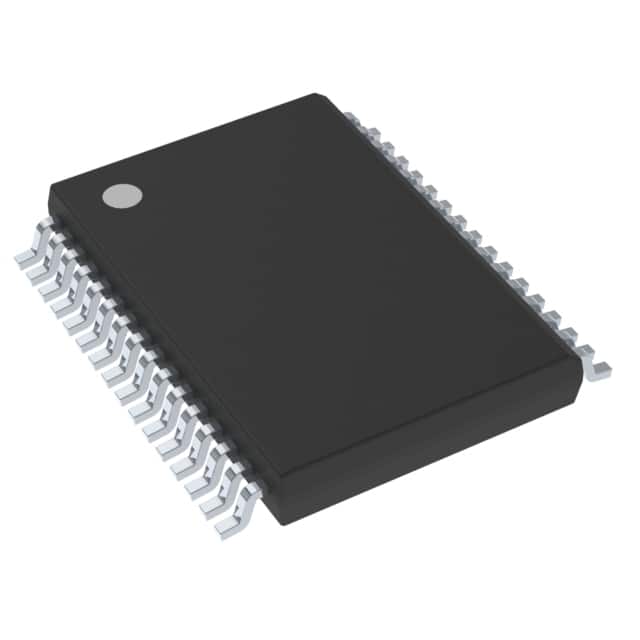

MC17XS6500EEKR2
IC PWR SWITCH N-CHAN 1:1 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC17XS6500EEKR2 is a robust power switch designed for demanding applications. This electronic component features a 2:3 ratio with six N-channel outputs, capable of delivering up to 5.5A continuously. Its integrated PWM functionality and SPI interface facilitate precise control and monitoring. The device offers comprehensive fault protection including fixed current limiting, open load detection, and over-temperature protection, ensuring system reliability. With a low on-resistance of 17mOhm (typical), it minimizes power dissipation. Housed in a 32-HSOP package with an exposed pad for enhanced thermal management, this component is ideal for surface-mount designs. The MC17XS6500EEKR2 operates within a load voltage range of 7V to 18V and a supply voltage of 4.5V to 5.5V, with an operating temperature range of -40°C to 125°C. This power switch is commonly employed in automotive, industrial automation, and advanced power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 17mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A |
| Ratio - Input:Output | 2:3 |
| Supplier Device Package | 32-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
