MC17XS6500CEK

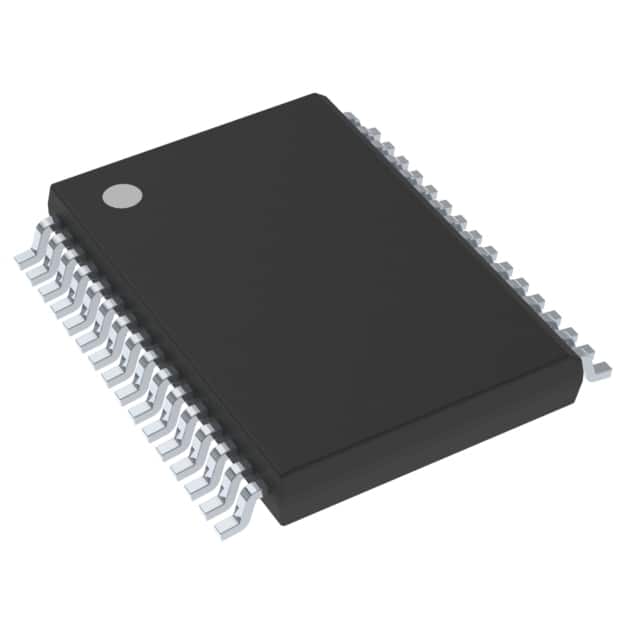

IC PWR SWITCH N-CHAN 1:1 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC17XS6500CEK is a high-side power switch and driver with a 1:1 ratio, designed for demanding applications. This N-Channel device offers a maximum output current of 5.5A and features robust fault protection, including fixed current limiting, open load detection, and over-temperature protection. Its capabilities are further enhanced by internal Pulse Width Modulation (PWM) and an SPI interface for control. The MC17XS6500CEK is housed in a 32-SOIC-EP (Exposed Pad) package, suitable for surface mounting. With a typical Rds On of 17mOhm, it operates efficiently within a load voltage range of 7V to 18V and a supply voltage of 4.5V to 5.5V. This component finds application in automotive systems, industrial automation, and power management solutions requiring reliable load control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 17mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
