MC10XS6325BEK

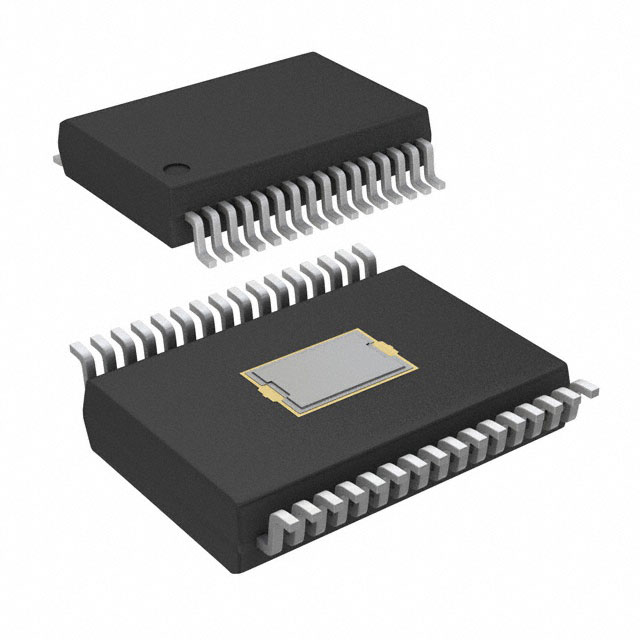

IC PWR SWITCH HIGH SIDE 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC10XS6325BEK is a power switch/driver IC, designed for high-side switching applications. This component features three independently controlled high-side outputs, each capable of delivering up to 4.5A continuously, with a peak capability of 9A. The device operates from a 4.5V to 5.5V supply and supports a load voltage range of 7V to 18V. Integrated fault protection mechanisms include open load detection and over-temperature shutdown, enhancing system reliability. Diagnostic information, such as fault status, is accessible via an SPI interface. This IC offers low on-resistance options, with typical values of 10mOhm and 25mOhm for its outputs. The MC10XS6325BEK is housed in a 32-SOIC-EP package (32-SSOP with an exposed pad), suitable for surface mounting. It finds application in automotive and industrial control systems requiring robust power distribution and load management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm, 25mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 4.5A, 9A |
| Ratio - Input:Output | - |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Open Load Detect, Over Temperature |
