MC10XS6225BEK

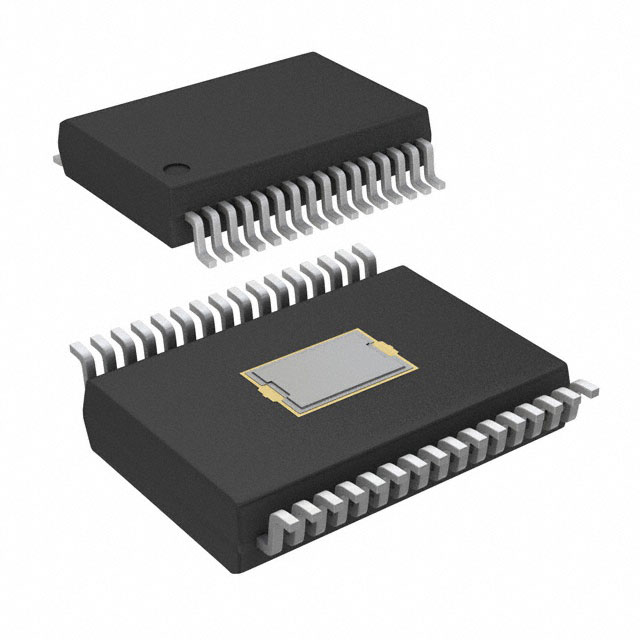

IC PWR SWITCH HIGH SIDE 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC10XS6225BEK is a high-side power switch IC designed for demanding applications. This component features two independent output channels, configurable for general-purpose switching, with a maximum output current capability of 4.5A and 9A respectively. It offers low on-resistance, with typical values of 10mOhm and 25mOhm, minimizing power dissipation.
The MC10XS6225BEK integrates robust fault protection mechanisms, including open-load detection and over-temperature protection, to ensure system integrity. A status flag provides diagnostic information. The device operates from a supply voltage of 4.5V to 5.5V and supports load voltages from 7V to 18V. Communication and control are managed via an SPI interface. The exposed pad 32-SOIC package facilitates efficient heat dissipation, making it suitable for surface mounting in automotive, industrial control, and power management systems. Operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm, 25mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 4.5A, 9A |
| Ratio - Input:Output | - |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Open Load Detect, Over Temperature |
