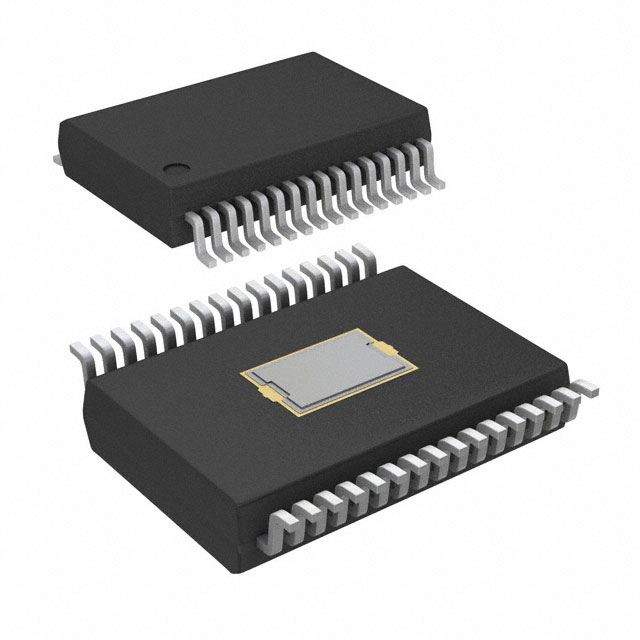

MC10XS6200BEKR2
IC PWR SWITCH 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC10XS6200BEKR2 is a dual-channel, high-side power switch with a 9A maximum output current capability per channel. This electronic component features a low on-resistance of 10mOhm (typical) and is designed for load voltages ranging from 7V to 18V, with a supply voltage (Vcc/Vdd) of 4.5V to 5.5V. The MC10XS6200BEKR2 includes integrated fault protection for open loads and over-temperature conditions, along with a status flag feature. Communication is handled via an SPI interface. The component is housed in a 32-SOIC-EP package with an exposed pad, suitable for surface mounting. This device is commonly utilized in automotive and industrial applications requiring robust power distribution and load management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 9A |
| Ratio - Input:Output | - |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Open Load Detect, Over Temperature |
