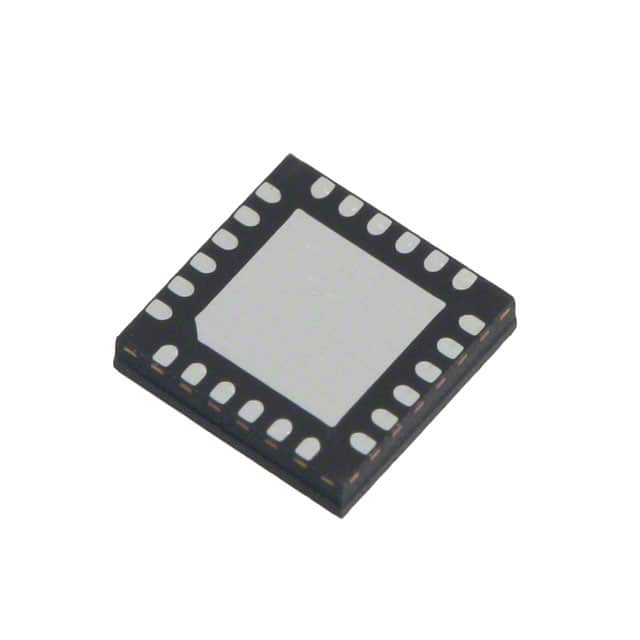

MC10XS3435BHFKR2
IC PWR SWITCH N-CHAN 1:1 24PQFNManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC10XS3435BHFKR2 is a high-side power switch IC featuring four independent N-channel outputs. With a maximum continuous output current of 6A per channel and low on-resistance (typically 10 mO), this device is designed for demanding power distribution applications. It integrates comprehensive fault protection including fixed current limiting, open-load detection, over-temperature, and over-voltage protection. Advanced features such as an internal PWM controller, slew rate control, and a watchdog timer are included for enhanced system management. The MC10XS3435BHFKR2 communicates via an SPI interface and is supplied in a 24-PQFN (12x12) package, suitable for surface mounting. Operating across a temperature range of -40°C to 150°C (TJ), this component finds application in automotive and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm (Max), 35mOhm (Max) |
| Input Type | - |
| Voltage - Load | 6V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 6A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 24-PQFN (12x12) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
