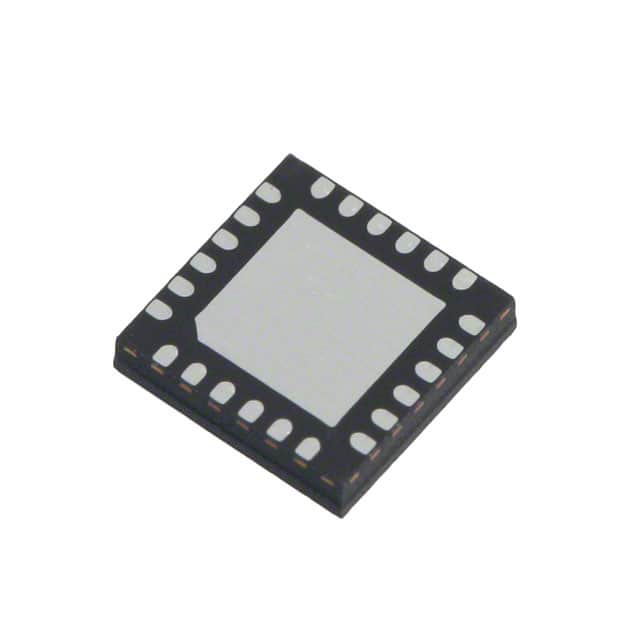

MC10XS3412CHFK
IC PWR SWITCH N-CHAN 1:1 24PQFNManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc.'s MC10XS3412CHFK is a high-side power switch IC designed for demanding applications. This component features four N-channel outputs, each with a low on-resistance of typically 10mOhm or 12mOhm, facilitating efficient power distribution. The device supports a load voltage range of 6V to 20V and operates with a supply voltage of 3V to 5.5V. Integrated fault protection includes fixed current limiting, open-load detection, over-temperature protection, and over-voltage protection, ensuring robust operation. Enhanced features such as internal PWM control, slew rate control, and a watchdog timer are provided for advanced system management. Communication and configuration are handled via an SPI interface. The MC10XS3412CHFK is housed in a 24-PQFN (12x12) package, suitable for surface mounting, and operates within an extended temperature range of -40°C to 150°C (TJ). This versatile power switch finds application in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
| Packaging | Tray |
| Package / Case | 24-PowerQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 10mOhm, 12mOhm |
| Input Type | - |
| Voltage - Load | 6V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 24-PQFN (12x12) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
