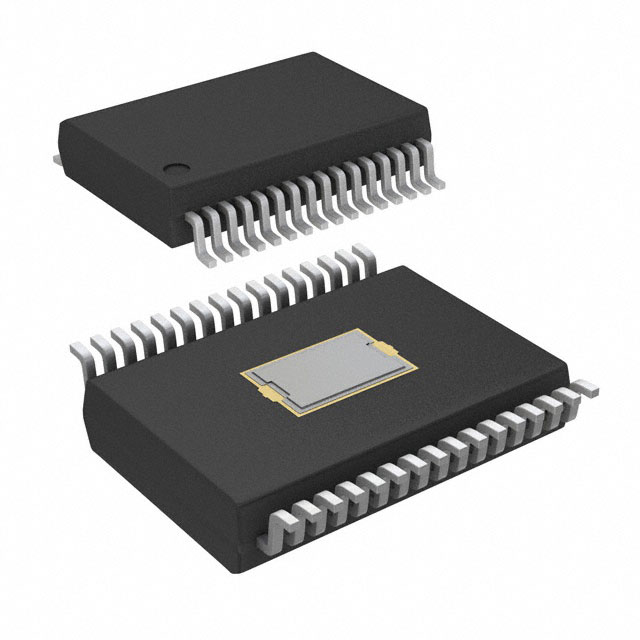

MC08XS6421DEKR2
IC HIGH SIDE SWITCH 12V 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC08XS6421DEKR2 is a high-side power switch IC designed for demanding applications. This general-purpose switch features six N-channel outputs and supports a load voltage range of 7V to 18V, with a supply voltage of 4.5V to 5.5V. The device offers robust fault protection, including fixed current limiting, open load detection, and over-temperature protection, ensuring reliable operation in automotive and industrial control systems. With an internal PWM capability and SPI interface, the MC08XS6421DEKR2 provides flexible control and monitoring. It is available in a 32-HSOP package, suitable for surface mounting. Typical on-resistance values are 8mOhm and 21mOhm for the outputs. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 8mOhm, 21mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 2:3 |
| Supplier Device Package | 32-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
