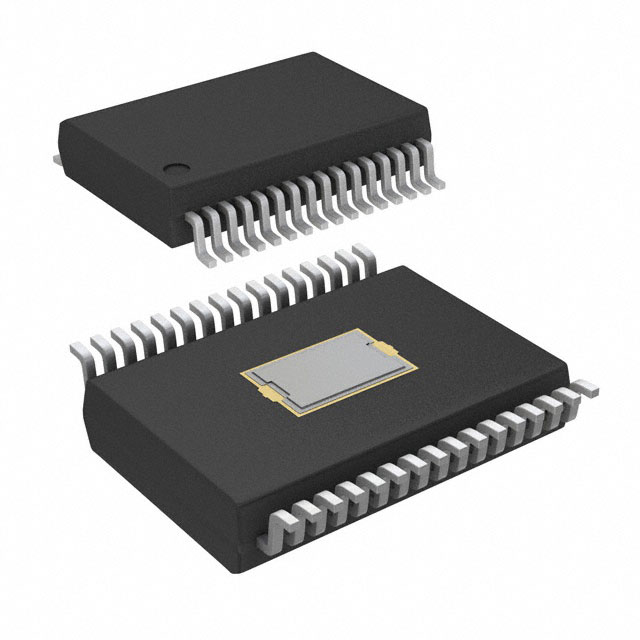

MC08XS6421DEK
IC HIGH SIDE SWITCH 12V 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC08XS6421DEK is a versatile high-side power switch designed for robust power distribution. This component features six N-channel MOSFET outputs, configurable in a 2:3 ratio, capable of delivering up to 5.5A or 11A depending on the specific configuration. Integrated fault protection mechanisms include fixed current limiting, open load detection, and over-temperature shutdown, ensuring system reliability. The device offers internal PWM functionality for flexible control and communicates via an SPI interface for seamless integration into complex systems. With a low on-resistance of 8mOhm and 21mOhm (typical), it minimizes power dissipation. Operating within a load voltage range of 7V to 18V and a supply voltage of 4.5V to 5.5V, the MC08XS6421DEK is suitable for automotive, industrial automation, and general-purpose power management applications. It is supplied in a 32-HSOP package for surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 8mOhm, 21mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 2:3 |
| Supplier Device Package | 32-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
