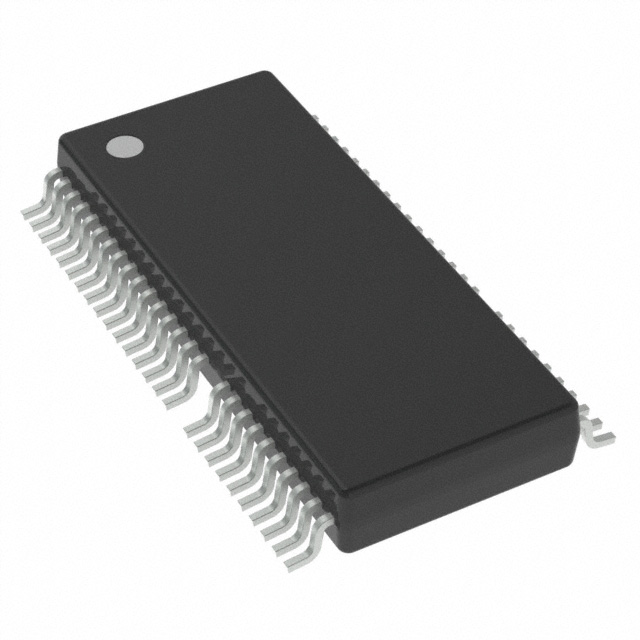

MC08XS6421CEK
HIGH-SIDE SWITCH 12V DUAL 8MOHMSManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC08XS6421CEK is a versatile dual high-side power switch with N-channel MOSFET outputs. This component offers distinct current capabilities of 5.5A and 11A, each with a low Rds(on) of 8mOhm and 21mOhm respectively. Designed for robust operation, it integrates comprehensive fault protection including fixed current limiting, open load detection, and over-temperature shutdown. The device operates from a 4.5V to 5.5V supply and controls loads from 7V to 18V. Featuring a serial peripheral interface (SPI) for control and status reporting, the MC08XS6421CEK is housed in a 54-HSOP package suitable for surface mounting. Its advanced protection features and high current handling make it ideal for automotive applications, industrial automation, and power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 8mOhm, 21mOhm |
| Input Type | CMOS |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 54-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
