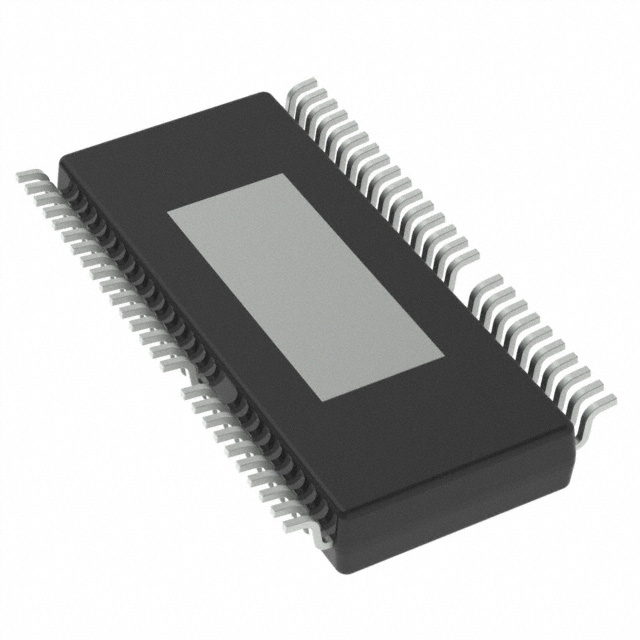

MC07XS6517DEKR2
IC PWR SWITCH N-CHAN 1:1 54HSOPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC07XS6517DEKR2 is a 6-channel N-Channel power switch designed for high-side load driving. This component features internal PWM control and offers selectable output current capabilities of 5.5A and 11A. Fault protection mechanisms include fixed current limiting, open load detection, and over-temperature shutdown. The device operates with a supply voltage range of 4.5V to 5.5V and supports load voltages from 7V to 18V. Key performance metrics include typical Rds(on) values of 7mOhm and 17mOhm. Communication and control are managed via an SPI interface. Mounting is facilitated through a surface mount design utilizing the 54-HSOP package, supplied on tape and reel. This component is suitable for applications in automotive and industrial sectors requiring robust power distribution and load management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 7mOhm, 17mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 2:3 |
| Supplier Device Package | 54-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
