MC07XS6517DEK

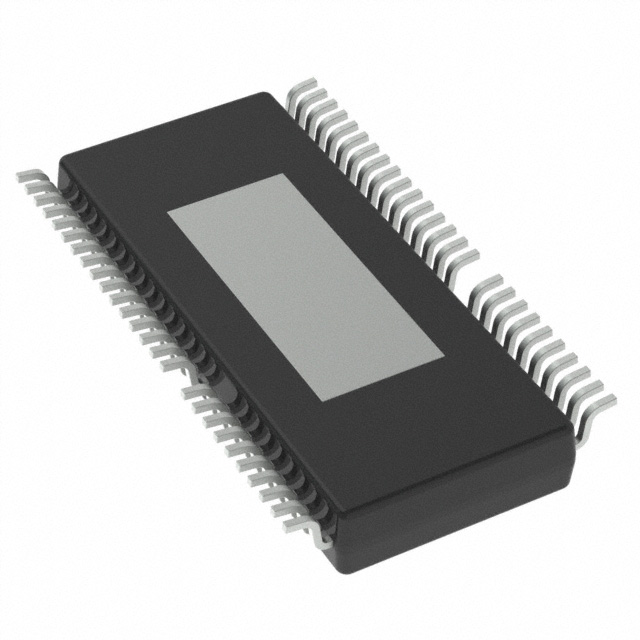

IC PWR SWITCH N-CHAN 1:1 54HSOPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC07XS6517DEK is a versatile 6-channel high-side power switch designed for robust power distribution. This component features N-channel MOSFETs with low on-resistance, offering typical values of 7mOhm and 17mOhm. The MC07XS6517DEK provides output current capabilities of up to 5.5A and 11A. Integrated fault protection mechanisms include fixed current limiting, open load detection, and over-temperature shutdown for enhanced system reliability. Communication is managed via an SPI interface, and internal PWM functionality is available. This device is housed in a 54-HSOP package, suitable for surface mounting, and operates within a temperature range of -40°C to 125°C. Applications span automotive, industrial automation, and consumer electronics requiring intelligent power management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tube |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 7mOhm, 17mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 2:3 |
| Supplier Device Package | 54-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
