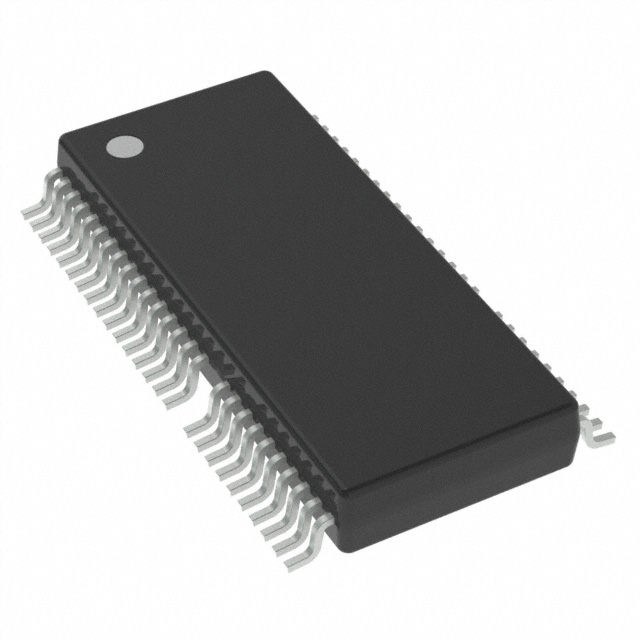

MC07XS6517BEK
IC PWR SWITCH N-CHAN 1:1 54HSOPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC07XS6517BEK is a high-side power switch with six N-channel outputs. This component offers selectable output currents of 5.5A and 11A per channel, featuring low on-resistance of 7mOhm and 17mOhm respectively. The device incorporates fault protection mechanisms including fixed current limiting, open load detection, and over-temperature protection. Its integrated PWM functionality and SPI interface facilitate robust control in demanding applications. Designed for surface mounting in a 54-HSOP package, the MC07XS6517BEK operates across a temperature range of -40°C to 125°C. This power switch is suitable for automotive and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal PWM |
| Packaging | Tube |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 7mOhm, 17mOhm |
| Input Type | - |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A, 11A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 54-HSOP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
