MC06XS4200FK

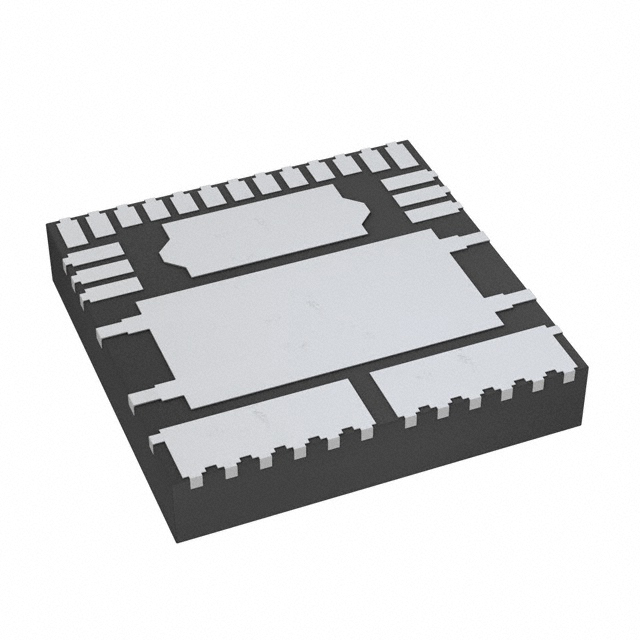

IC PWR SWITCH N-CHAN 1:1 23PQFNManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC06XS4200FK is a high-side power switch featuring N-channel MOSFETs with a 1:1 input-to-output ratio. This component offers a maximum continuous output current of 9A, with a typical Rds(on) of 6mOhm. Integrated fault protection includes fixed current limiting, open load detection, over-temperature protection, and over-voltage protection. Key features include an internal PWM controller and slew rate control. The device communicates via an SPI interface and is housed in a 23-PQFN (12x12) package suitable for surface mounting. Operating across a voltage range of 8V to 36V for the load and 3V to 5.5V for the supply, the MC06XS4200FK is designed for demanding applications in automotive and industrial sectors. It operates within an ambient temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal PWM, Slew Rate Controlled |
| Packaging | Tray |
| Package / Case | 23-PowerQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 6mOhm (Max) |
| Input Type | - |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 9A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 23-PQFN (12x12) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
