MPC17531ATEJ
IC MTR DRV BIPLR 2.7-3.6V 20SSOPManufacturer: NXP USA Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
NXP USA Inc. MPC17531ATEJ is a bipolar motor driver featuring a power MOSFET parallel architecture. This component is designed for brushed DC and bipolar stepper motor control, offering a fully integrated solution with both control and power stages. The device operates from a supply voltage range of 2.7V to 3.6V and supports a load voltage of 2V to 8.6V. With an output current capability of 700mA, it is suitable for applications requiring precise motor drive, such as battery-powered devices. The output configuration comprises four half-bridges, enabling flexible motor control strategies. The MPC17531ATEJ is housed in a 20-TSSOP package with an exposed pad for enhanced thermal performance, and is supplied in tape and reel. Its operating temperature range is -20°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

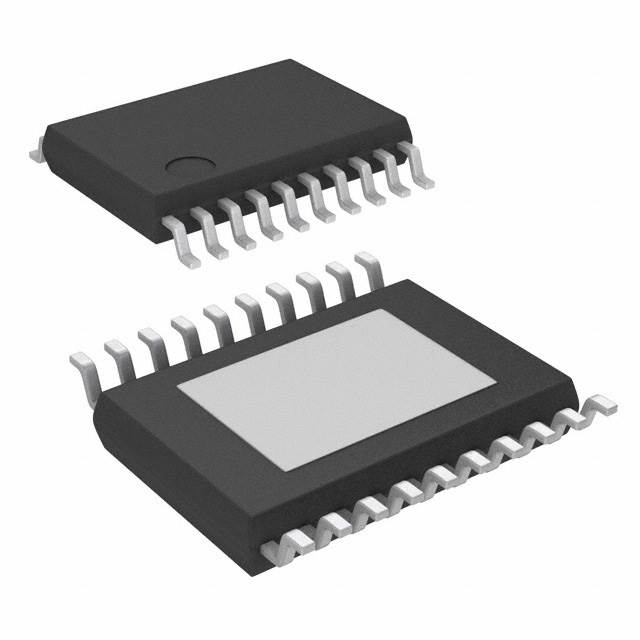

| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Applications | Battery Powered |
| Technology | Power MOSFET |
| Voltage - Load | 2V ~ 8.6V |
| Supplier Device Package | 20-TSSOP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
