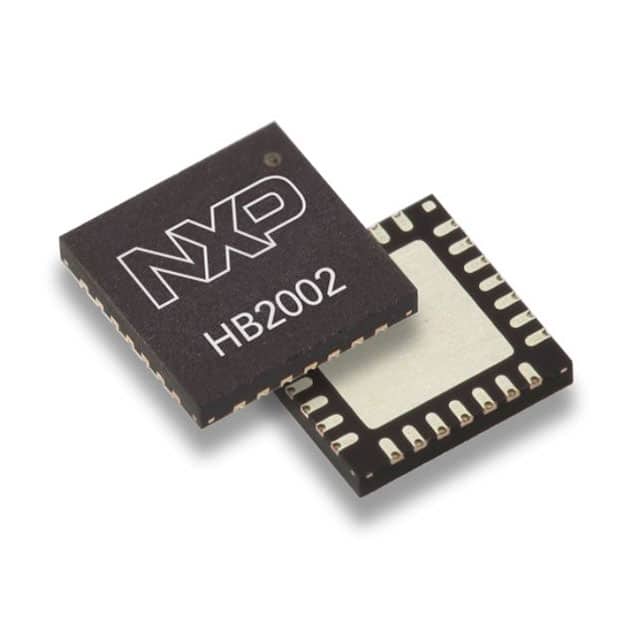

MC33HB2002ES
H-BRIDGE, SPI, BRUSHED DC MOTORManufacturer: NXP USA Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
NXP USA Inc. MC33HB2002ES is a fully integrated bipolar stepper motor driver featuring a control and power stage. This CMOS device operates from 5V to 28V and supports a current output of up to 10A. The MC33HB2002ES utilizes an SPI interface for control and provides two half-bridge outputs for brushed DC motor applications. Its 28-HVQFN (6x6) package with wettable flanks is designed for surface mounting. This component is engineered for automotive applications and operates within a temperature range of -40°C to 125°C. The MC33HB2002ES is suitable for demanding applications requiring precise motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 28-VQFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 10A |
| Interface | SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 5V ~ 28V |
| Applications | DC Motors |
| Technology | CMOS |
| Voltage - Load | 5V ~ 28V |
| Supplier Device Package | 28-HVQFN (6x6) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
Request a Quote
