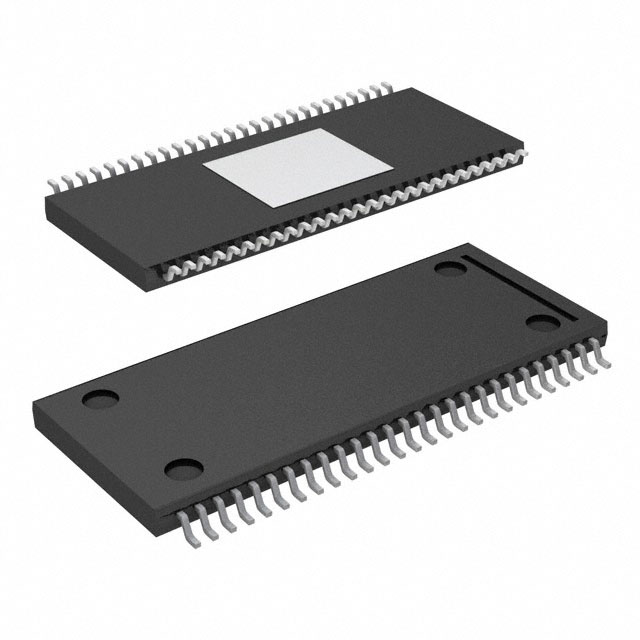

MC33937APEKR2
IC MOTOR DRIVER 6V-58V 54SOICManufacturer: NXP USA Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The NXP USA Inc. MC33937APEKR2 is a NMOS motor driver designed for demanding applications. This component, housed in a 54-SOIC-EP package, offers advanced control capabilities suitable for Brushless DC (BLDC) motors. Featuring a SPI interface for digital communication, it manages commutation and direction for up to three half-bridge pre-drivers. The device operates across a supply voltage range of 6V to 58V and is rated for automotive-grade performance, operating reliably in temperatures from -40°C to 135°C. Its surface mount design facilitates integration into compact electronic systems. This motor driver is commonly utilized in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | SPI |
| Operating Temperature | -40°C ~ 135°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Voltage - Supply | 6V ~ 58V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | - |
| Supplier Device Package | 54-SOIC-EP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
| Grade | Automotive |
