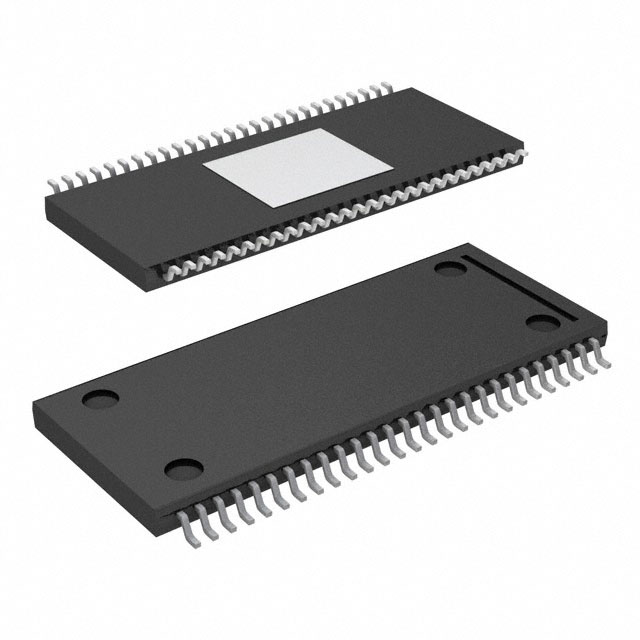

MC33932EKR2
IC MOTOR DRIVER 5V-28V 54SOICManufacturer: NXP USA Inc.
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The NXP USA Inc. MC33932EKR2 is a fully integrated motor driver designed for brushed DC applications. This device features a parallel interface and a CMOS technology, enabling precise control of motor speed and direction. With an output current capability of 5A and a voltage range of 5V to 28V for both supply and load, it is suitable for robust operation. The MC33932EKR2 is packaged in a 54-SOIC-EP (Exposed Pad) format, designed for surface mounting. Its half-bridge output configuration supports up to four independent channels. This component is graded for automotive applications, indicating its suitability for demanding environmental conditions and reliability requirements encountered in automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 5A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 5V ~ 28V |
| Applications | - |
| Technology | CMOS |
| Voltage - Load | 5V ~ 28V |
| Supplier Device Package | 54-SOIC-EP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
