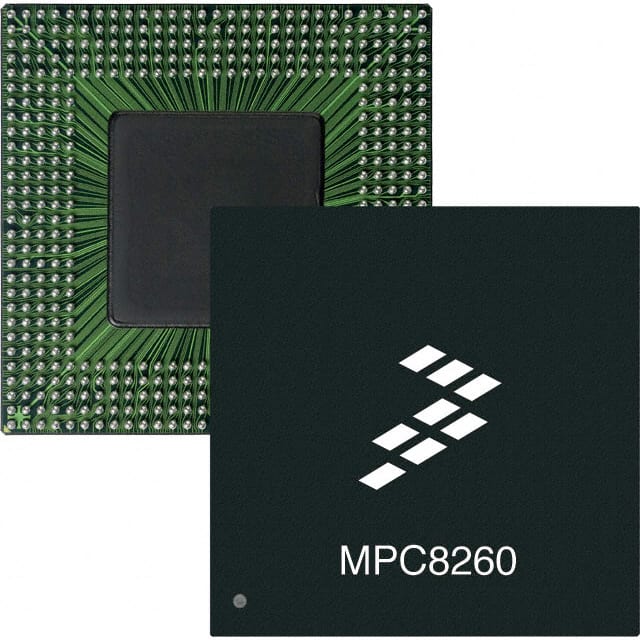

XPC8260ZUIHBC
IC MPU MPC82XX 200MHZ 480TBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
PowerPC G2 Microprocessor IC MPC82xx 1 Core, 32-Bit 200MHz 480-TBGA (37.5x37.5)
Additional Information
Series: MPC82xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 480-LBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC G2 |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 480-TBGA (37.5x37.5) |
| Ethernet | 10/100Mbps (3) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; RISC CPM |
| RAM Controllers | DRAM, SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, SCC, SMC, SPI, UART, USART |
Request a Quote
