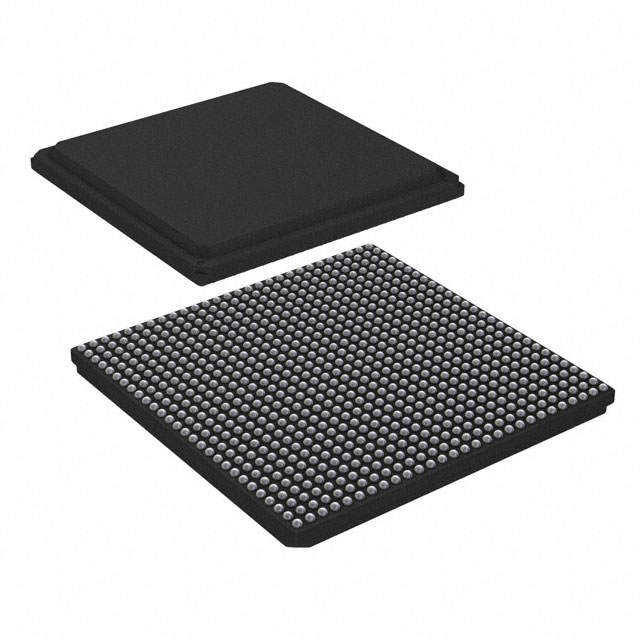

T2080NSE7MQB
IC MPU QORIQ T2 1.8GHZ NI1230Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ T2 T2080NSE7MQB is a high-performance 64-bit PowerPC e6500 microprocessor featuring 4 cores operating at 1.8GHz. This component is housed in a NI-1230-4LS2L package and offers extensive connectivity options including I2C, MMC/SD, PCIe, RapidIO, SPI, and UART interfaces. It supports DDR3 and DDR3L RAM controllers and includes dual SATA 3Gbps ports. For networking, it provides eight 1Gbps, four 2.5Gbps, and four 10Gbps Ethernet ports, along with two USB 2.0 ports with PHY. Security features are robust, encompassing boot security, cryptography, secure fusebox, secure debug, tamper detection, and volatile key storage. This processor is suitable for demanding applications in the networking, industrial, and telecommunications sectors.
Additional Information
Series: QorIQ T2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | NI-1230-4LS2L |
| Mounting Type | Chassis Mount |
| Speed | 1.8GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e6500 |
| Voltage - I/O | - |
| Supplier Device Package | NI-1230-4LS2L |
| Ethernet | 1Gbps (8), 2.5Gbps (4), 10Gbps (4) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 4 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | I2C, MMC/SD, PCIe, RapidIO, SPI, UART |
