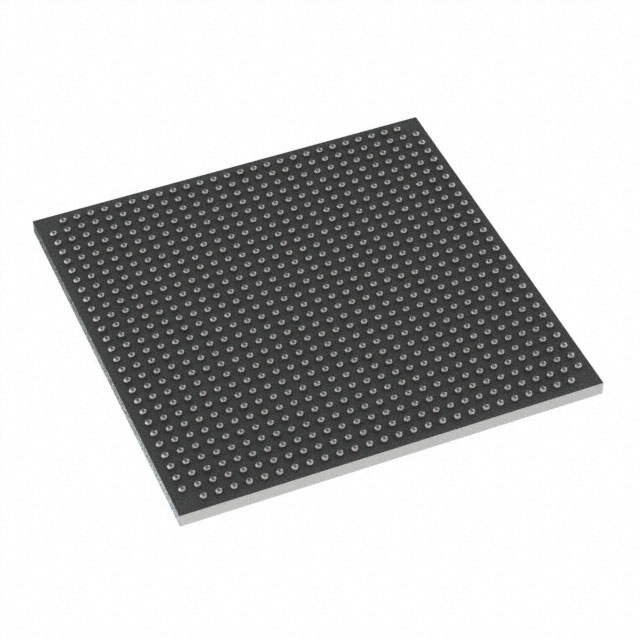

T1022NXE7MQB
IC MPU QORIQ T1 1.4GHZ 780FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ T1 series microprocessor, part number T1022NXE7MQB. This 64-bit, dual-core PowerPC e5500 processor operates at 1.4GHz and is housed in a 780-FCPBGA (23x23) package. Featuring multiple high-speed interfaces including five 1Gbps Ethernet ports, two SATA 3Gbps ports, two USB 2.0 ports with PHY, and support for I2C, MMC/SD, PCIe, and SPI, this device is engineered for demanding applications. It includes integrated DDR3L/4 RAM controllers and robust security features such as boot security, cryptography, and tamper detection. The operating temperature range is -40°C to 105°C (TA). This component is commonly utilized in networking infrastructure, industrial automation, and embedded computing systems.
Additional Information
Series: QorIQ T1RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 780-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.4GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e5500 |
| Voltage - I/O | - |
| Supplier Device Package | 780-FCPBGA (23x23) |
| Ethernet | 1Gbps (5) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L/4 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | I2C, MMC/SD, PCIe, SPI, UART |
