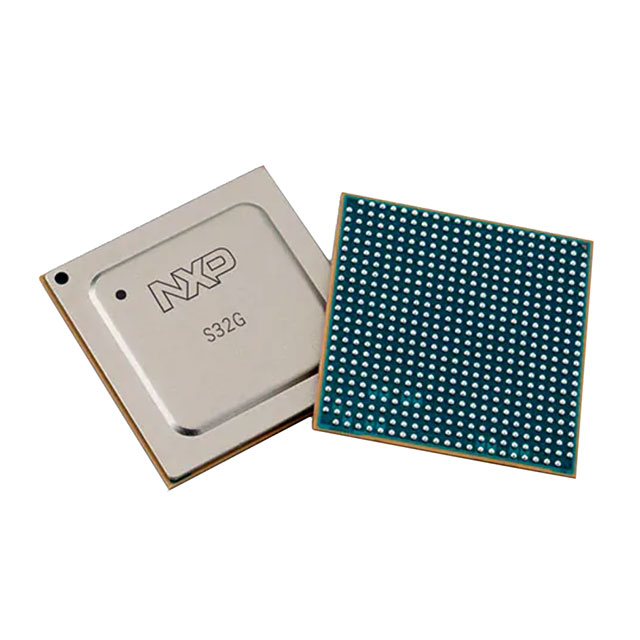

S32G274AABK0VUCT
IC MPU 400MHZ/1GHZ 525FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. S32G274AABK0VUCT is a high-performance microprocessor featuring a heterogeneous multi-core architecture. This device integrates four 64-bit ARM Cortex-A53 cores operating at 1GHz with three 32-bit ARM Cortex-M7 cores at 400MHz, providing extensive processing capabilities. It supports DDR3L and LPDDR4 DRAM memory controllers and includes a comprehensive suite of peripherals such as CAN, FlexRay, I2C, SPI, UART, MII, RGMII, RMII, SGMII Ethernet interfaces, and USB OTG. Enhanced security is provided by the HSE-H (Hardware Security Engine) feature. The S32G274AABK0VUCT is housed in a 525-FCPBGA (19x19) package and operates within an extended temperature range of -40°C to 105°C (TA). This microprocessor is well-suited for demanding applications in automotive, industrial automation, and communication sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 525-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 400MHz, 1GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M7 |
| Voltage - I/O | - |
| Supplier Device Package | 525-FCPBGA (19x19) |
| Ethernet | MII, RGMII, RMII, SGMII |
| USB | USB OTG (1) |
| Number of Cores/Bus Width | 4 Core, 64-Bit/3 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L SDRAM, LPDDR4 DRAM |
| Graphics Acceleration | - |
| Display & Interface Controllers | - |
| Security Features | HSE-H |
| SATA | - |
| Additional Interfaces | CAN, FlexRay, I2C, SPI, UART |
