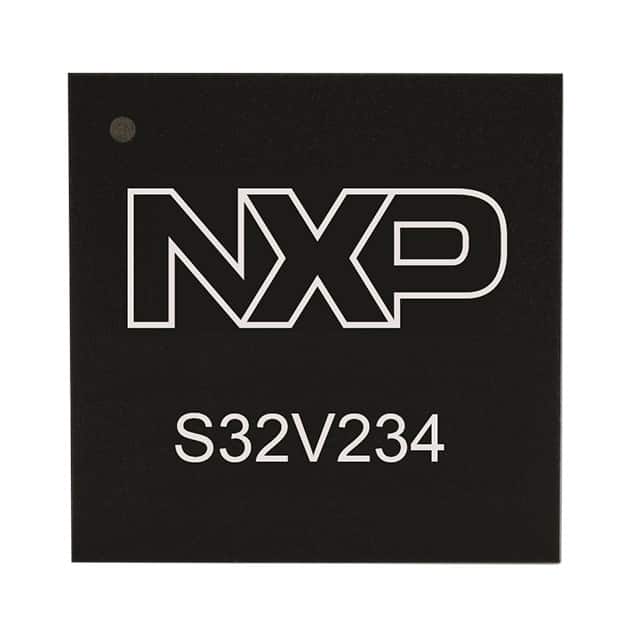

PS32V234CMN1AVUB
IC MPU 1.0GHZ/133MHZ 621FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. PS32V234CMN1AVUB is a microprocessor featuring dual-core heterogeneous processing. It integrates four ARM Cortex-A53 cores operating at 1.0GHz with a single ARM Cortex-M4 core at 133MHz. Enhanced by NEON™ MPE for multimedia processing, this device supports LPDDR2, DDR3, and DDR3L RAM controllers. Display and interface capabilities include APEX2-CL, DCU (2D-ACE), ISP, MIPI-CSI2, and VIU, alongside 1Gbps Ethernet. Security is addressed through AES, ARM TrustZone, Boot ROM, CSE, OCOTP_CTRL, and System JTAG. Surface mountable in a 621-FCBGA (17x17) package, it operates from -40°C to 105°C. Applications span automotive and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 621-FBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz, 133MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | ARM® Cortex®-A53, ARM® Cortex®-M4 |
| Voltage - I/O | 1.0V, 1.8V, 3.3V |
| Supplier Device Package | 621-FCPBGA (17x17) |
| Ethernet | 1Gbps |
| USB | - |
| Number of Cores/Bus Width | 4 Core, 64-Bit/1 Core, 32-Bit |
| Co-Processors/DSP | Multimedia; NEON™ MPE |
| RAM Controllers | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | APEX2-CL, DCU (2D-ACE), ISP, MIPICSI2, VIU |
| Security Features | AES, ARM TZ, Boot, CSE, OCOTP_CTRL, System JTAG |
| SATA | - |
