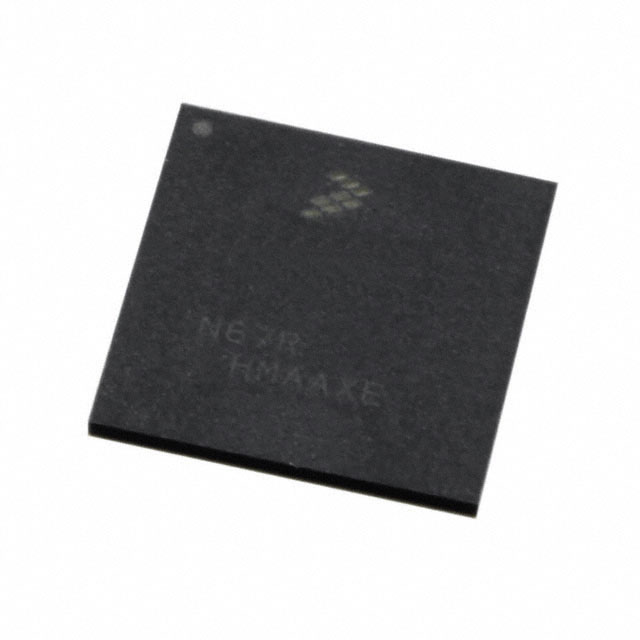

PLS1012ASE7HKA
IC MPU QORIQ 800MHZ 211FCLGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ® Series ARM® Cortex®-A53 64-bit microprocessor, part number PLS1012ASE7HKA. This single-core processor operates at 800MHz and is housed in a 211-FCLGA (9.6x9.6) package for surface mounting. It features DDR3L RAM controllers and supports a range of interfaces including eMMC/SD/SDIO, I2C, I2S, SPI, and UART. Connectivity options include one SATA 6Gbps port and one USB 2.0 port, along with USB 3.0 + PHY. Security is enhanced with ARM TZ features. This component is suitable for applications in networking, industrial automation, and embedded systems. Operating temperature ranges from 0°C to 105°C (TA).
Additional Information
Series: QorIQ®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 211-VFLGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | ARM® Cortex®-A53 |
| Supplier Device Package | 211-FCLGA (9.6x9.6) |
| Ethernet | - |
| USB | USB 2.0 (1), USB 3.0 + PHY |
| Number of Cores/Bus Width | 1 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3L |
| Security Features | ARM TZ |
| SATA | SATA 6Gbps (1) |
| Additional Interfaces | eMMC/SD/SDIO, I2C, I2S, SPI, UART |
