P5020NSN7VNB
IC MPU QORIQ P5 2.0GHZ 1295BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

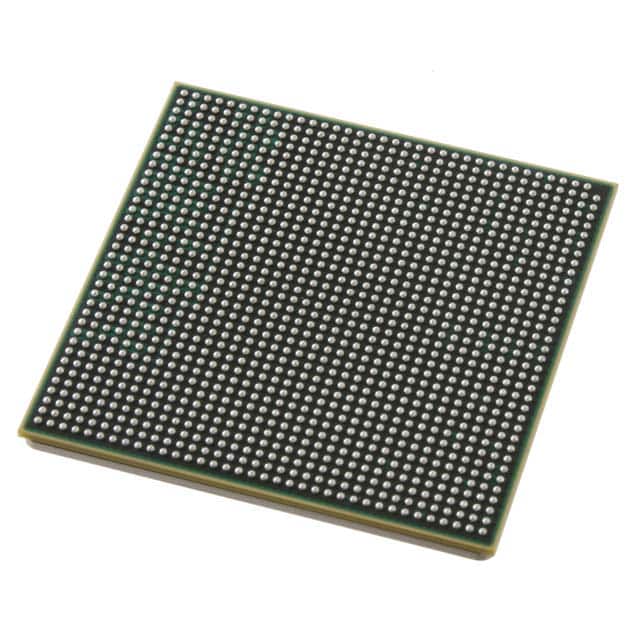

NXP USA Inc. QorIQ P5 series microprocessor, part number P5020NSN7VNB. This 64-bit, dual-core PowerPC e5500 device operates at 2.0GHz. It features a 1295-FCPBGA (37.5x37.5) package, designed for surface mounting. The P5020NSN7VNB includes multiple Ethernet ports (five 1Gbps, one 10Gbps), two SATA 3Gbps interfaces, and two USB 2.0 ports with integrated PHY. Additional interfaces comprise DUART, I2C, MMC/SD, and SPI. RAM controller support includes DDR3 and DDR3L. This component is utilized in networking, industrial automation, and telecommunications applications. The operating temperature range is 0°C to 105°C (TA).
Additional Information
Series: QorIQ P5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1295-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 2.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e5500 |
| Voltage - I/O | - |
| Supplier Device Package | 1295-FCPBGA (37.5x37.5) |
| Ethernet | 1Gbps (5), 10Gbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
