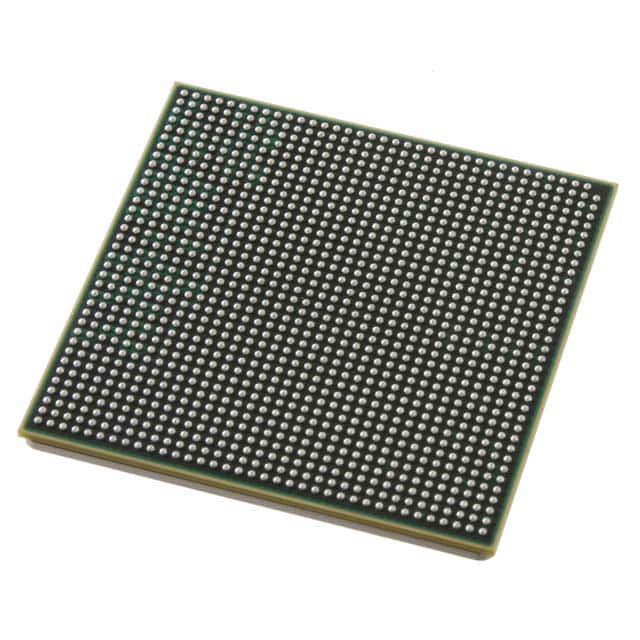

P5020NSE7TNB
IC MPU QORIQ P5 2.0GHZ 1295BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P5 Series P5020NSE7TNB is a high-performance 64-bit dual-core PowerPC e5500 microprocessor operating at 2.0GHz. This device features a 1295-FCPBGA package and is designed for demanding applications. Integrated security features include SEC 4.2 co-processing, boot security, cryptography, secure fusebox, secure JTAG, secure memory, and tamper detection, making it suitable for secure processing environments. Connectivity options include five 1Gbps Ethernet ports and one 10Gbps Ethernet port, two SATA 3Gbps interfaces, two USB 2.0 ports with PHY, DUART, I2C, MMC/SD, and SPI. The P5020NSE7TNB supports DDR3 and DDR3L RAM controllers and operates within an ambient temperature range of 0°C to 105°C. Common applications include networking infrastructure, industrial control systems, and embedded computing platforms.
Additional Information
Series: QorIQ P5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1295-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 2.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e5500 |
| Voltage - I/O | - |
| Supplier Device Package | 1295-FCPBGA (37.5x37.5) |
| Ethernet | 1Gbps (5), 10Gbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | Security; SEC 4.2 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure JTAG, Secure Memory, Tamper Detection |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
Request a Quote
