P5020NSE7QMB
IC MPU QORIQ P5 2.0GHZ 1295BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

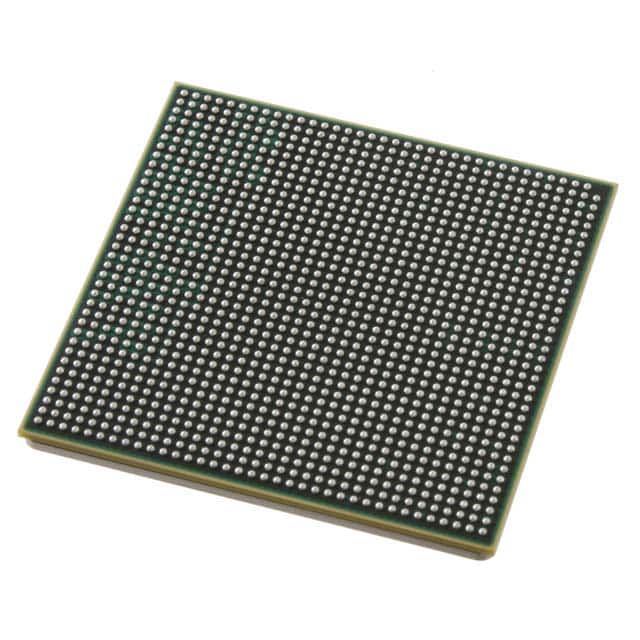

NXP USA Inc. QorIQ P5 series P5020NSE7QMB is a 64-bit dual-core PowerPC e5500 microprocessor operating at 2.0GHz. This electronic component features a 1295-FCPBGA (37.5x37.5) package. Integrated co-processors include SEC 4.2 for enhanced security functions such as boot security, cryptography, secure fusebox, secure JTAG, secure memory, and tamper detection. Connectivity options include multiple 1Gbps and a 10Gbps Ethernet interfaces, two SATA 3Gbps ports, and two USB 2.0 ports with PHY. Additional interfaces provided are DUART, I2C, MMC/SD, and SPI. The P5020NSE7QMB supports DDR3 and DDR3L RAM controllers. This microprocessor is suitable for applications in networking, telecommunications, and industrial automation.
Additional Information
Series: QorIQ P5RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 1295-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 2.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e5500 |
| Voltage - I/O | - |
| Supplier Device Package | 1295-FCPBGA (37.5x37.5) |
| Ethernet | 1Gbps (5), 10Gbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 64-Bit |
| Co-Processors/DSP | Security; SEC 4.2 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Secure Fusebox, Secure JTAG, Secure Memory, Tamper Detection |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
