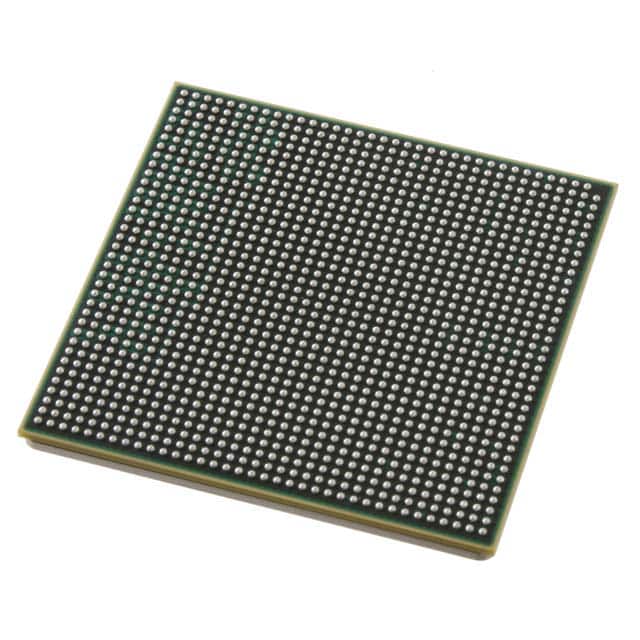

P3041NSE7MMC
IC MPU QORIQ P3 1.2GHZ 1295BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P3 series microprocessor, part number P3041NSE7MMC. This PowerPC e500mc core processor features 4 cores with a 32-bit bus width, operating at 1.2GHz. The 1295-FCPBGA (37.5x37.5) package facilitates surface mounting. Integrated interfaces include DUART, I2C, MMC/SD, RapidIO, and SPI. Networking capabilities are robust with five 10/100/1000Mbps Ethernet ports and one 10Gbps Ethernet port. Storage connectivity is provided by two SATA 3Gbps interfaces, and two USB 2.0 ports with PHY are also present. Memory support includes DDR3 and DDR3L RAM controllers. Security is enhanced with a SEC 4.2 co-processor, offering boot security, cryptography, a random number generator, and secure fusebox functionality. This component operates within an ambient temperature range of 0°C to 105°C and supports I/O voltages of 1.5V, 1.8V, 2.5V, and 3.3V. This device finds application in networking, industrial automation, and defense systems.
Additional Information
Series: QorIQ P3RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1295-BBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500mc |
| Voltage - I/O | 1.5V, 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 1295-FCPBGA (37.5x37.5) |
| Ethernet | 10/100/1000Mbps (5), 10Gbps (1) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 4 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.2 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, RapidIO, SPI |
