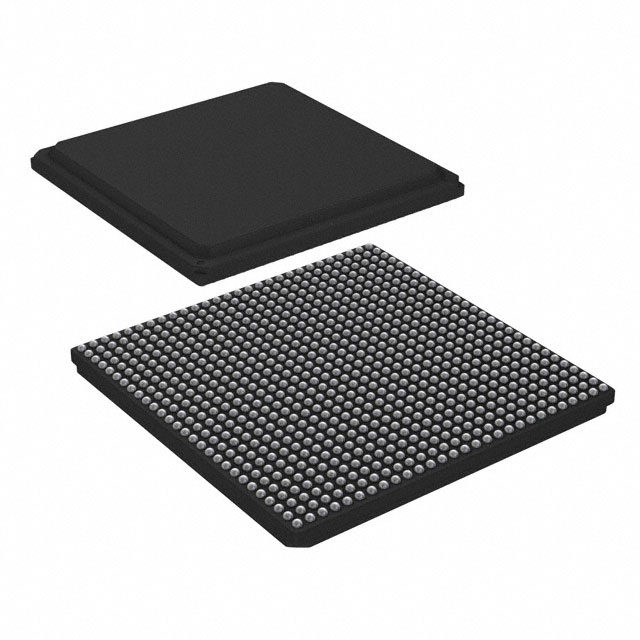

P2040NSE7HLC
IC MPU QORIQ P2 1.2GHZ 780FCPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
PowerPC e500mc Microprocessor IC QorIQ P2 4 Core, 32-Bit 1.2GHz 780-FCPBGA (23x23)
Additional Information
Series: QorIQ P2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 780-BFBGA, FCBGA |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500mc |
| Voltage - I/O | 1.0V, 1.35V, 1.5V, 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 780-FCPBGA (23x23) |
| Ethernet | 10/100/1000Mbps (5) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 4 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.2 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, RapidIO, SPI |
Request a Quote
Clients Also Buy

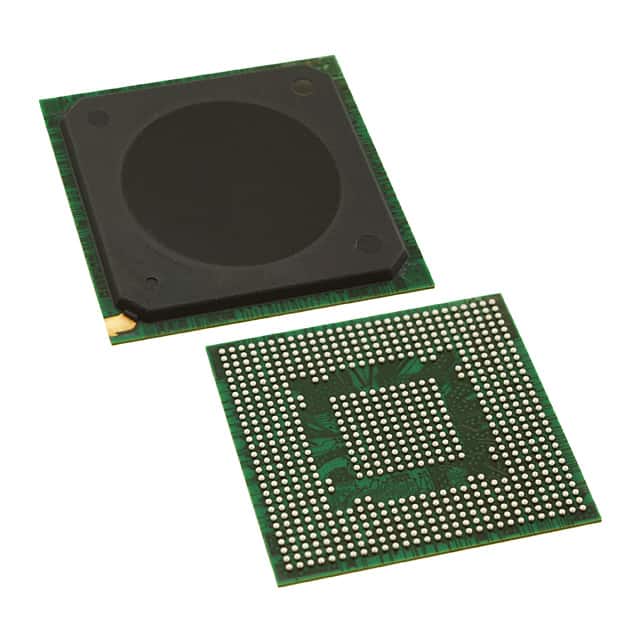

P2020PSE2KZA
