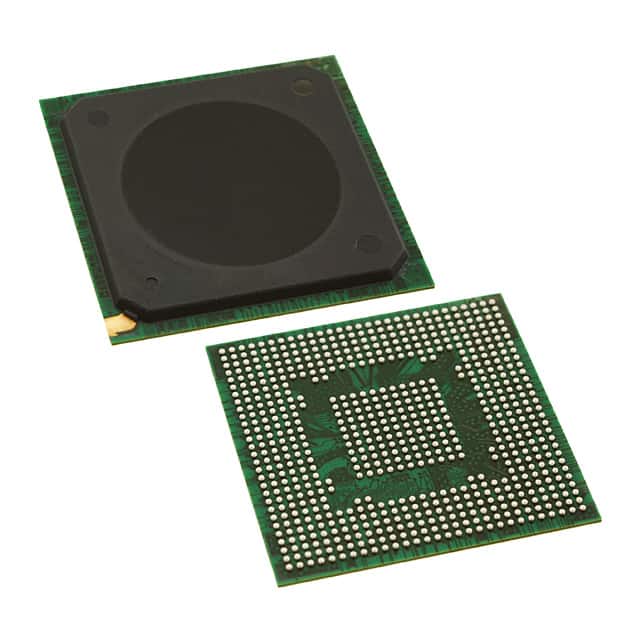

P2020NSE2HHC
IC MPU QORIQ P2 1.2GHZ PBGA689Manufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P2 series P2020NSE2HHC is a dual-core, 32-bit PowerPC e500v2 microprocessor operating at 1.2GHz. This component features a 689-TEPBGA II (31x31) package for surface mounting. Integrated functionalities include three 10/100/1000Mbps Ethernet ports, two USB 2.0 ports with PHY, and support for DUART, I2C, MMC/SD, and SPI interfaces. The P2020NSE2HHC also incorporates a SEC 3.3 co-processor for security functions, including cryptography and a random number generator. Memory support extends to DDR2 and DDR3 RAM controllers. This microprocessor is utilized in networking, industrial automation, and telecommunications applications.
Additional Information
Series: QorIQ P2RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 689-BBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 1.2GHz |
| Operating Temperature | 0°C ~ 125°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 689-TEPBGA II (31x31) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 3.3 |
| RAM Controllers | DDR2, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
Request a Quote
