P1016NSE5FFB
IC MPU QORIQ P1 667MHZ 561TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

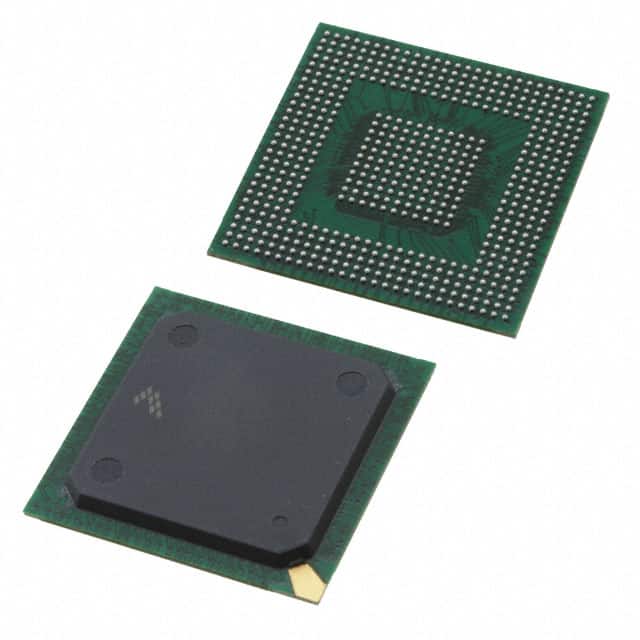

NXP USA Inc. QorIQ P1 series PowerPC e500v2 microprocessor, part number P1016NSE5FFB. This 32-bit, single-core processor operates at 667MHz, housed in a 561-TEPBGA I (23x23) package. It features multiple 10/100/1000Mbps Ethernet interfaces, two USB 2.0 ports with PHY, and includes a QUICC Engine for communications processing and SEC 3.3 for security acceleration with cryptography and random number generation. Additional interfaces such as DUART, I2C, MMC/SD, and SPI are integrated. This component supports DDR2 and DDR3 RAM controllers and is suitable for surface mount applications. Its operating temperature range is 0°C to 125°C (TA). Commonly found in networking, industrial automation, and embedded computing applications.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 561-FBGA |
| Mounting Type | Surface Mount |
| Speed | 667MHz |
| Operating Temperature | 0°C ~ 125°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 561-TEPBGA I (23x23) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (2) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; QUICC Engine, Security; SEC 3.3 |
| RAM Controllers | DDR2, DDR3 |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography, Random Number Generator |
| SATA | - |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
