P1014NXE5HHB
IC MPU QORIQ P1 800MHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

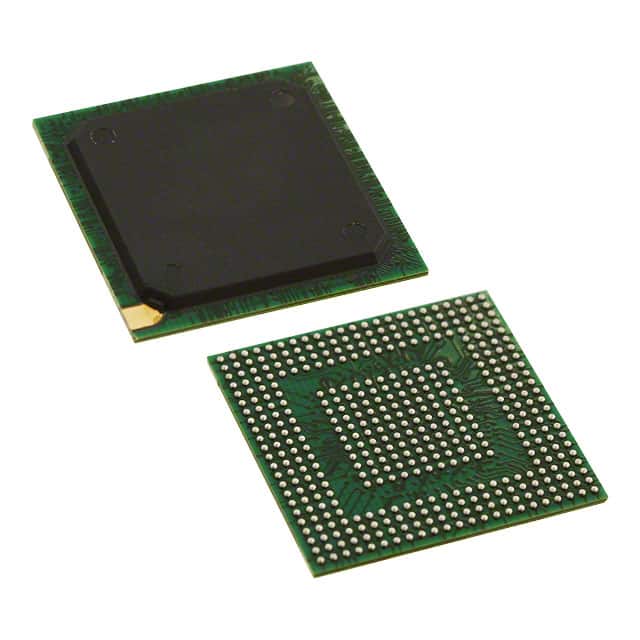

NXP USA Inc. QorIQ P1 Series PowerPC e500v2 microprocessor, part number P1014NXE5HHB. This 32-bit, single-core processor operates at 800MHz and is housed in a 425-TEPBGA (19x19) package. It features a robust set of peripherals including dual 10/100/1000Mbps Ethernet controllers, two SATA 3Gbps interfaces, and a USB 2.0 port with PHY. The P1014NXE5HHB also includes I2C, SPI, and DUART interfaces, along with support for DDR3 and DDR3L memory. Enhanced security is provided by the SEC 4.4 co-processor, offering features such as boot security, cryptography, and a random number generator. This component is suitable for demanding applications in networking, industrial automation, and data storage. The operating temperature range is -40°C to 105°C (TA), and it is supplied in trays for surface mounting.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
