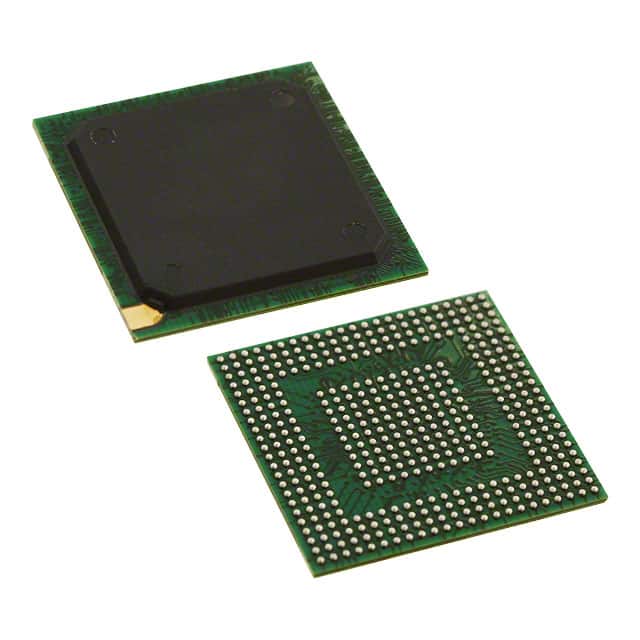

P1014NXE5HFB
IC MPU QORIQ P1 800MHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P1 P1014NXE5HFB is a 32-bit PowerPC e500v2 microprocessor with a single core operating at 800MHz. This component features two 10/100/1000Mbps Ethernet interfaces, two SATA 3Gbps ports, and a USB 2.0 interface with PHY. Integrated security capabilities include Boot Security, Cryptography, Random Number Generator, and a Secure Fusebox, supported by the SEC 4.4 co-processor. Additional interfaces include DUART, I2C, MMC/SD, and SPI. Memory support extends to DDR3 and DDR3L. The device is housed in a 425-TEPBGA I (19x19) package and is rated for an operating temperature range of -40°C to 105°C. This microprocessor is suitable for applications in networking, industrial automation, and embedded systems.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
