P1014NSN5FFB
IC MPU QORIQ P1 800MHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

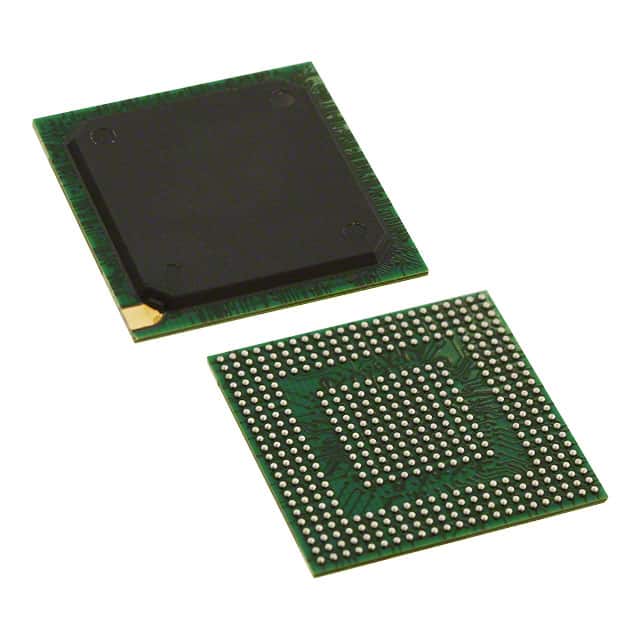

The NXP USA Inc. QorIQ P1 series P1014NSN5FFB is a 32-bit PowerPC e500v2 microprocessor featuring a single core operating at 800MHz. This component is housed in a 425-TEPBGA I (19x19) package, suitable for surface mount applications. It provides integrated support for dual UART, I2C, MMC/SD, and SPI interfaces, along with dual 10/100/1000Mbps Ethernet controllers. Memory interface capabilities include DDR3 and DDR3L RAM controllers. Additionally, it incorporates two SATA 3Gbps ports and a USB 2.0 port with an integrated PHY. This microprocessor is designed for operation within an ambient temperature range of 0°C to 105°C. Its robust feature set makes it suitable for applications in networking, industrial control, and embedded systems.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
