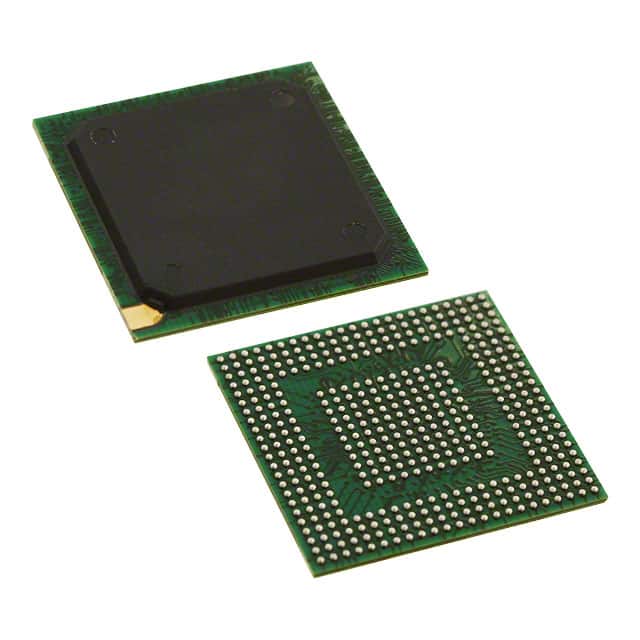

P1014NSE5HFB
IC MPU QORIQ P1 800MHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P1 series processor, part number P1014NSE5HFB. This 32-bit, single-core PowerPC e500v2 microprocessor operates at 800MHz. It features a 425-TEPBGA I (19x19) package for surface mounting. The component supports DDR3 and DDR3L RAM controllers, dual 10/100/1000Mbps Ethernet interfaces, and dual SATA 3Gbps ports. Additional interfaces include DUART, I2C, MMC/SD, and SPI. For enhanced security, it integrates the SEC 4.4 co-processor, offering features like boot security, cryptography, and a random number generator. A USB 2.0 port with PHY is also included. This processor is suitable for applications in networking, industrial control, and embedded systems. Operating temperature range is 0°C to 105°C (TA). Packaged in trays.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
