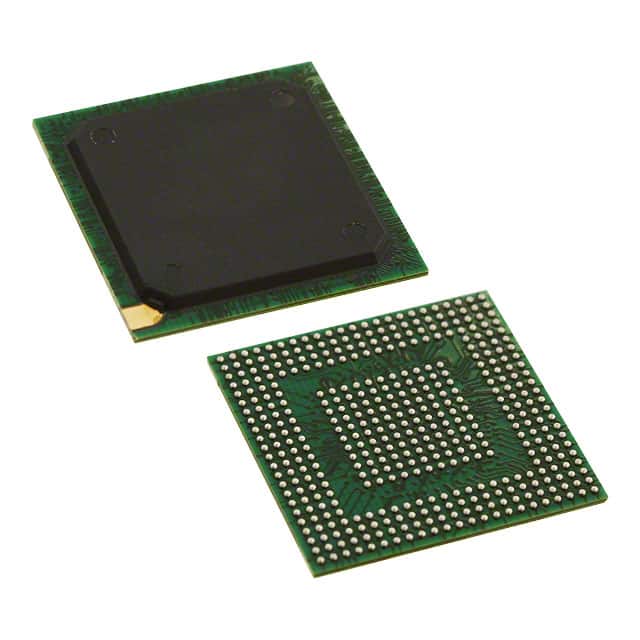

P1014NSE5DFB
IC MPU QORIQ P1 800MHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. QorIQ P1 series P1014NSE5DFB is a 32-bit PowerPC e500v2 microprocessor featuring a single core operating at 800MHz. This device is housed in a 425-TEPBGA (19x19) package and supports surface mount installation. Integrated peripherals include dual DUART, I2C, MMC/SD, and SPI interfaces, along with dual 10/100/1000Mbps Ethernet ports and two SATA 3Gbps interfaces. For connectivity, it offers a USB 2.0 port with PHY. The P1014NSE5DFB incorporates NXP's Security Engine (SEC 4.4) for cryptographic acceleration and includes boot security, cryptography, and a random number generator for enhanced security features. It also supports DDR3 and DDR3L RAM controllers. This component is suitable for applications in networking, industrial automation, and embedded systems requiring high performance and robust security. The operating temperature range is 0°C to 105°C (TA).
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 800MHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (2) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | DUART, I2C, MMC/SD, SPI |
