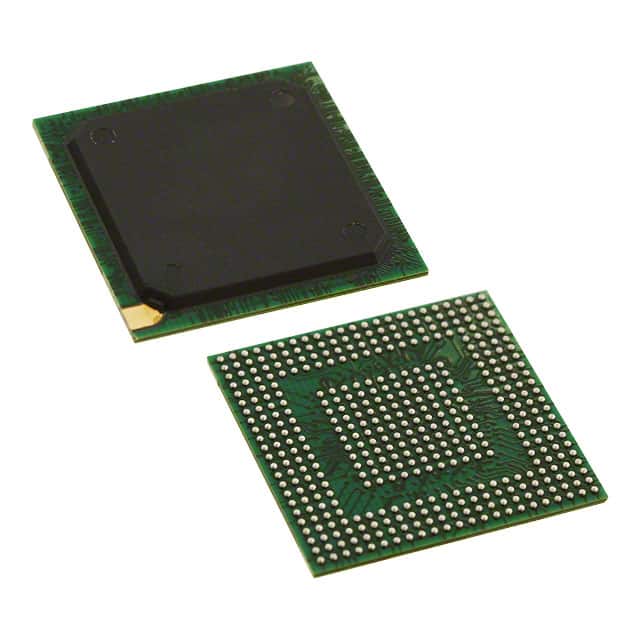

P1010NXN5HHB
IC MPU QORIQ P1 1.0GHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
PowerPC e500v2 Microprocessor IC QorIQ P1 1 Core, 32-Bit 1.0GHz 425-TEPBGA I (19x19)
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | CAN, DUART, I2C, MMC/SD, SPI |
Request a Quote
Clients Also Buy
P1010NSN5HHB
IC MPU QORIQ P1 1.0GHZ 425TEPBGA
P5040NXE1TMB
IC MPU QORIQ P1 1.8GHZ 1295BGA

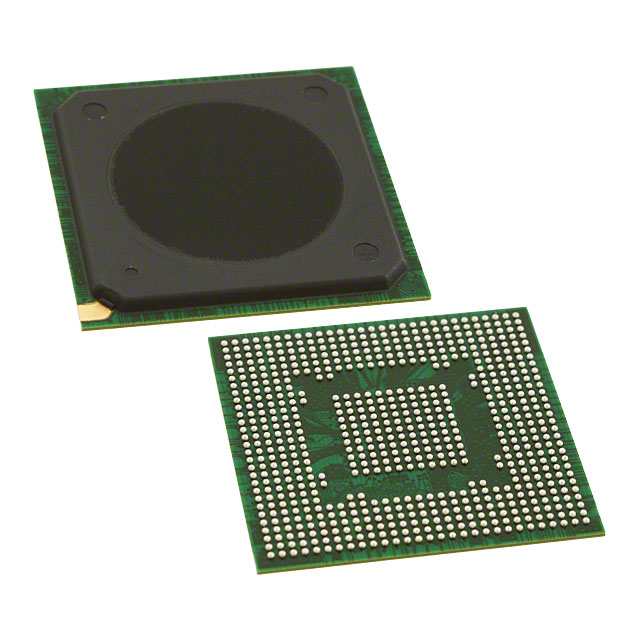

P1021PSE2HFB
