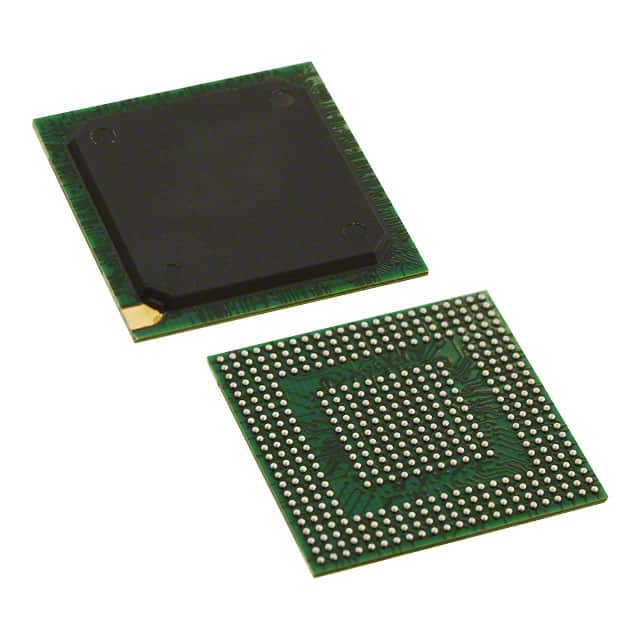

P1010NXE5FFB
IC MPU QORIQ P1 1.0GHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
The NXP USA Inc. QorIQ P1 series P1010NXE5FFB is a 32-bit PowerPC e500v2 microprocessor designed for demanding applications. This single-core device operates at 1.0GHz and features a 425-TEPBGA (19x19) supplier device package, suitable for surface mount applications. Enhanced connectivity is provided through multiple Ethernet ports (10/100/1000Mbps), CAN, DUART, I2C, MMC/SD, SPI, and USB 2.0 with PHY. Memory support includes DDR3 and DDR3L RAM controllers. For robust security, this component incorporates NXP’s SEC 4.4 co-processor, offering features like boot security, cryptography, a random number generator, and secure fusebox capabilities. It also supports two SATA 3Gbps interfaces. The P1010NXE5FFB operates within an industrial temperature range of -40°C to 105°C (TA). This microprocessor is commonly found in networking equipment, industrial automation, and communications infrastructure.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Security; SEC 4.4 |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Boot Security, Cryptography, Random Number Generator, Secure Fusebox |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | CAN, DUART, I2C, MMC/SD, SPI |
