P1010NSN5HHA
IC MPU QORIQ P1 1.0GHZ 425TEPBGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

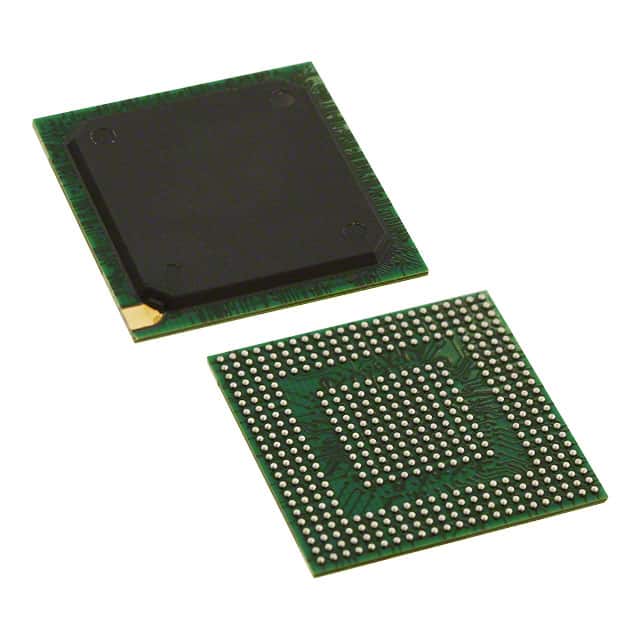

NXP USA Inc. QorIQ P1 Series P1010NSN5HHA is a 32-bit PowerPC e500v2 microprocessor with a single core operating at 1.0GHz. This device features a 425-TEPBGA I (19x19) package suitable for surface mounting. The P1010NSN5HHA includes multiple integrated interfaces such as CAN, DUART, I2C, MMC/SD, and SPI. For networking, it offers three 10/100/1000Mbps Ethernet ports. Storage connectivity is provided via two SATA 3Gbps interfaces, and a USB 2.0 port with PHY is also integrated. The microprocessor supports DDR3 and DDR3L RAM controllers. This component is commonly utilized in industrial automation, networking infrastructure, and embedded computing applications. It is supplied in trays.
Additional Information
Series: QorIQ P1RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 425-FBGA |
| Mounting Type | Surface Mount |
| Speed | 1.0GHz |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Core Processor | PowerPC e500v2 |
| Voltage - I/O | - |
| Supplier Device Package | 425-TEPBGA I (19x19) |
| Ethernet | 10/100/1000Mbps (3) |
| USB | USB 2.0 + PHY (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | SATA 3Gbps (2) |
| Additional Interfaces | CAN, DUART, I2C, MMC/SD, SPI |
