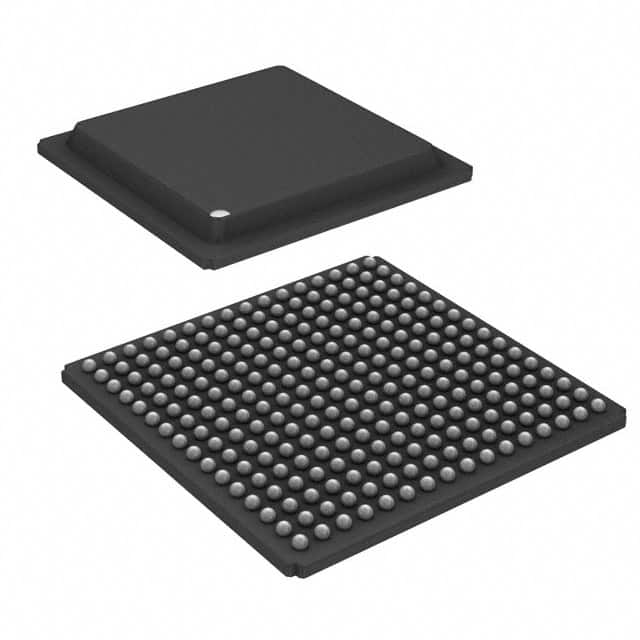

MPC875VR66
IC MPU MPC8XX 66MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8xx series microprocessor, part number MPC875VR66, is a 32-bit, single-core RISC processor operating at 66MHz. This device features a Communications Processor Module (CPM) for enhanced communication protocols and a Security Engine (SEC) for cryptographic acceleration. The MPC875VR66 offers extensive peripheral support including multiple Ethernet interfaces (10Mbps and 10/100Mbps), USB 2.0, a PCMCIA controller, UART/USART, SPI, I2C, and TDM. It also includes HDLC/SDLC support. This microprocessor is suitable for demanding applications in networking, telecommunications, and industrial automation. The MPC875VR66 is available in a 256-PBGA (23x23) surface mount package and operates within an ambient temperature range of 0°C to 95°C.
Additional Information
Series: MPC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10Mbps (1), 10/100Mbps (2) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM, Security; SEC |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | Cryptography |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
