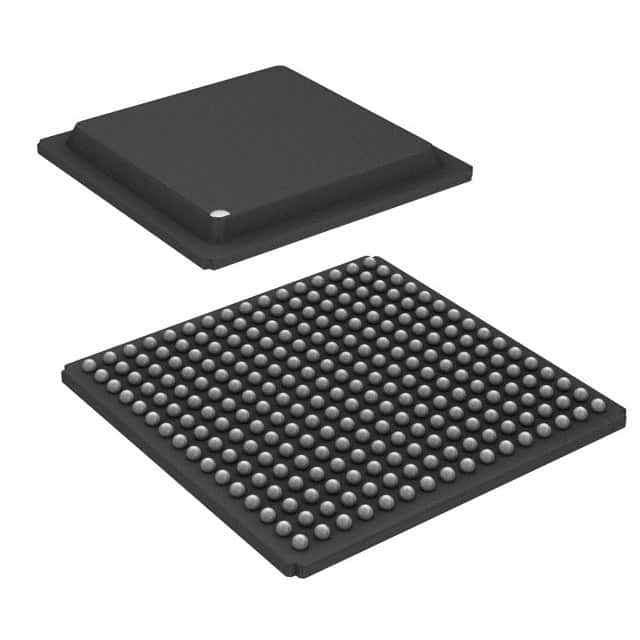

MPC870ZT133
IC MPU MPC8XX 133MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC870ZT133 is a 32-bit microprocessor featuring a single MPC8xx core operating at 133MHz. This component is housed in a 256-PBGA (23x23) package and supports surface mount installation. The MPC870ZT133 integrates a Communications Processor Module (CPM) for dedicated communications tasks and offers multiple peripheral interfaces including I2C, PCMCIA, SPI, TDM, and UART. It also incorporates dual 10/100Mbps Ethernet ports and a single USB 2.0 interface. The device includes DRAM controllers and operates with I/O voltages of 3.3V within an ambient temperature range of 0°C to 95°C. This microprocessor is suitable for applications in networking, telecommunications, and embedded systems.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 133MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, PCMCIA, SPI, TDM, UART |
