MPC870CZT66
IC MPU MPC8XX 66MHZ 256BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More

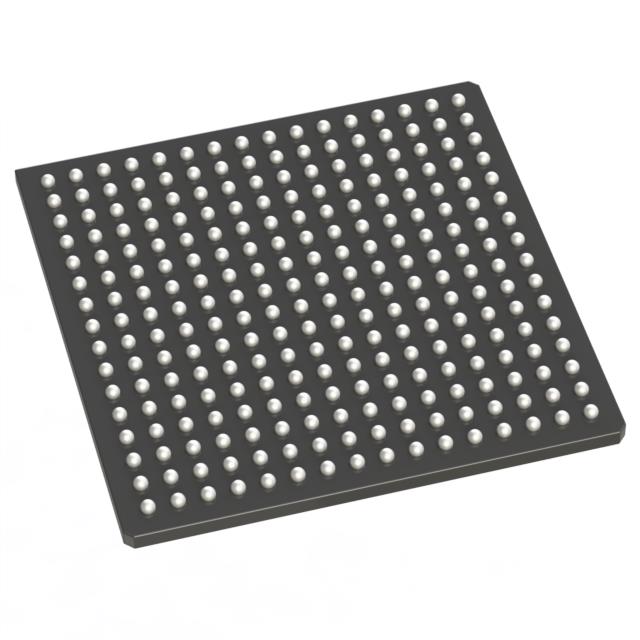

NXP USA Inc. MPC870CZT66 is a 32-bit PowerPC microprocessor from the MPC8xx series, operating at 66MHz. This device features a single core and is packaged in a 256-PBGA (23x23) for surface mounting. It includes a Communications Processor Module (CPM) for enhanced communication capabilities, along with interfaces for I2C, PCMCIA, SPI, TDM, and UART. The MPC870CZT66 also supports two 10/100Mbps Ethernet ports and a single USB 2.0 port, with support for DRAM controllers. This component is suitable for demanding applications in networking, telecommunications, and industrial automation. It operates within an ambient temperature range of -40°C to 100°C.
Additional Information
Series: MPC8xxRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-BBGA |
| Mounting Type | Surface Mount |
| Speed | 66MHz |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 256-PBGA (23x23) |
| Ethernet | 10/100Mbps (2) |
| USB | USB 2.0 (1) |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | I2C, PCMCIA, SPI, TDM, UART |
