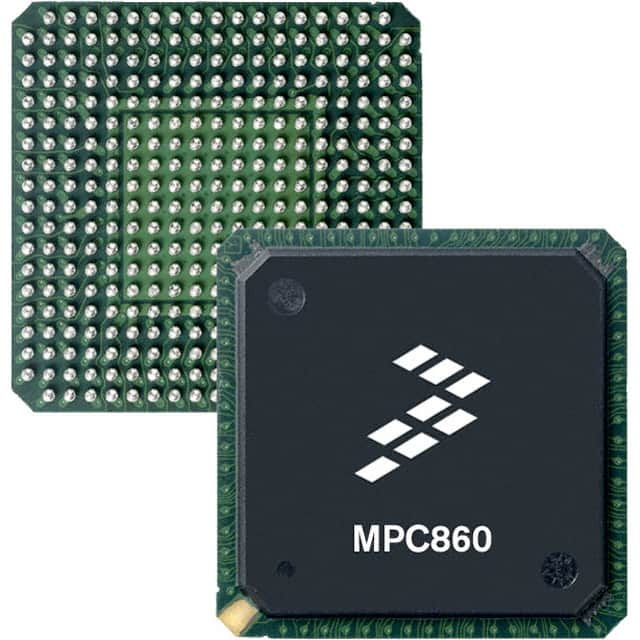

MPC860TZQ50D4R2
IC MPU MPC8XX 50MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8xx series microprocessor, part number MPC860TZQ50D4R2. This 32-bit, single-core processor operates at 50MHz, featuring a 357-PBGA (25x25) package for surface mounting. The device includes a Communications Processor Module (CPM) for co-processing and DSP functions. Connectivity is supported through multiple interfaces including HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART. Ethernet support includes four 10Mbps ports and one 10/100Mbps port. RAM controllers support DRAM. This component operates within an ambient temperature range of 0°C to 95°C and has an I/O voltage of 3.3V. It is supplied in a Tape & Reel (TR) package. The MPC860TZQ50D4R2 is utilized in networking infrastructure and telecommunications applications.
Additional Information
Series: MPC8xxRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 50MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (4), 10/100Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
