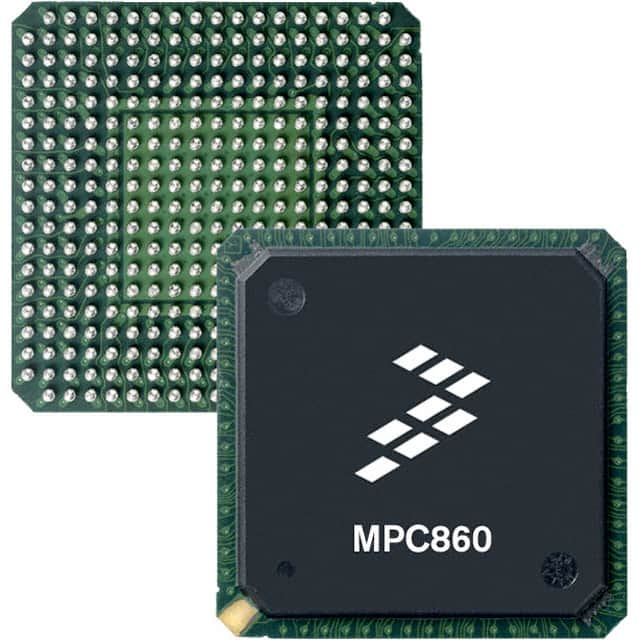

MPC860TVR80D4
IC MPU MPC8XX 80MHZ 357BGAManufacturer: NXP USA Inc.
Categories: Microprocessors
Quality Control: Learn More
NXP USA Inc. MPC8xx Series MPC860TVR80D4 is a 32-bit PowerPC embedded microprocessor operating at 80MHz. This device features a single core and is housed in a 357-PBGA (25x25) package. It offers extensive peripheral support including HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, and UART/USART interfaces. Network connectivity is provided by four 10Mbps Ethernet ports and one 10/100Mbps Ethernet port. The integrated Communications Processor Module (CPM) handles communications tasks. Memory support includes DRAM controllers. This component is suitable for applications in telecommunications, networking, and industrial automation. It is supplied in Tray packaging and operates within an ambient temperature range of 0°C to 95°C. The I/O voltage is 3.3V.
Additional Information
Series: MPC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 357-BBGA |
| Mounting Type | Surface Mount |
| Speed | 80MHz |
| Operating Temperature | 0°C ~ 95°C (TA) |
| Core Processor | MPC8xx |
| Voltage - I/O | 3.3V |
| Supplier Device Package | 357-PBGA (25x25) |
| Ethernet | 10Mbps (4), 10/100Mbps (1) |
| USB | - |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Co-Processors/DSP | Communications; CPM |
| RAM Controllers | DRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | - |
| Security Features | - |
| SATA | - |
| Additional Interfaces | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
